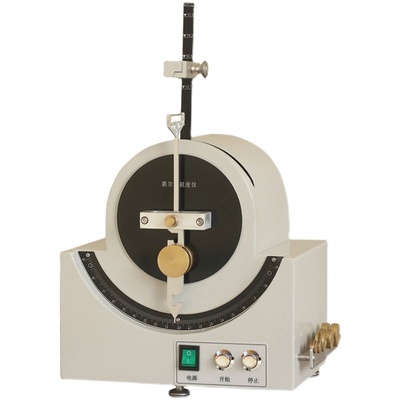

ASTM D6125 SWINGING FABRIC SOFTNESS TESTER GURLEY STIFFNESS TESTER

Introduction:

Used to measure the bending resistance (stiffness) of materials such as paper, cardboard, fabric, non-woven fabric, artificial leather, etc., especially suitable for relatively stiff fabrics.

Standard:

TAPPI T543-1994

ASTM D6125-97

IEST-RP-CC021.2 (2005)

CRAA 433

Parameter:

1. Measuring range: 1.39 mg ~ 56888 mg (Gurley stiffness unit)
2. Sample length: 25.4 mm (1 in.), 38.1 mm (1.5 in.), 63.5 mm (2.5 in.), 114.3mm (4.5 in.)
3. Sample width: ≤50.8 mm (2 in.)
4. Sample clamp position (test length): 12.7 mm, 25.4 mm, 50.8mm, 101.6 mm
5. Sample rack swing speed: ω=2r/min
6. Weights: 5g, 10g, 25g, 50g, 100g, 200g
7. Weight slot center distance: rl=25.4mm, r2=50.8mm, r3 =101.6mm
8. Swing angle: <±45°
9. Power supply: AC220V 50Hz 30W
10. Dimensions: 300mm×180mm×460mm
11. Weight: 8kg
