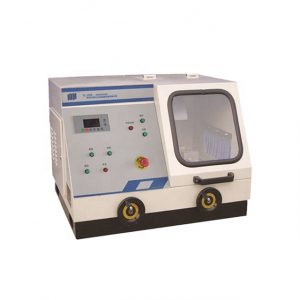

Heavy Duty Automatic Metallographic Specimen Sample Cutting Machine
Heavy Duty Automatic Metallographic Specimen Sample Cutting Machine can cut round work-piece with diameter within 80mm and rectangular sample with height of 80 mm and deep 160mm.The machine is equipped with a self cooling system for the specimen cooling so as to prevent the damage of the specimen due to overheat during cutting. This machine can also set the cutting speed for cutting different samples, thus improving the quality of cutting samples. It can be used to cut samples manually and automatically. Large volume cutting room is more convenient for cutting. It is one of the necessary equipment for metallographic test in colleges, universities and factories.

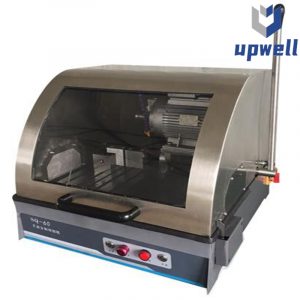

Manual metallographic specimen cutting machine
- Manual metallographic specimen cutting machine
- Cutting table size 230*240mm
- Abrasive disc specification 250*32*2mm

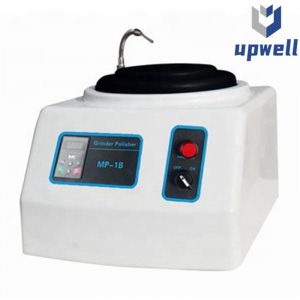

MP-1B Single Disc Metallographic Sample Grinding Polisher with Stepless Speed
- Grinding and Polishing Wheel Diameter: 230mm
- Abrasive Paper Diameter: 230mm
- Platen Speed: stepless, 100-1400r/min or four speed 300r/min, 600r/min, 900r/min, 1400r/min
- Single Disc Metallographic Sample Grinding Polisher with Stepless Speed

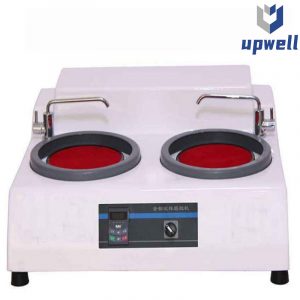

MP-2B Double discs Metallographic Metallurgical Specimen Grinding and Polishing Machine
Grinding Disc Diameter 200mm（230mm optional) Polishing Disc Diameter 200mm Grinding Disc Rotating Speed 50-1000rpm(stepless speed) Grinding Head Rotating Speed 0-100rpm Trinocular inverted metallurgical microscope
- Eyepiece tube 45° inclined, interpupillary distance adjustment range 53~75mm.
- Focusing mechanism Coarse micro-motion coaxial focusing with locking device, jogging lattice value:2μm
- Trinocular inverted metallurgical microscope

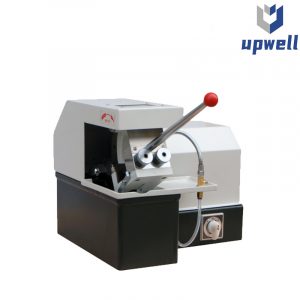

UQ-1 Metallographic Sample Cutting Machine
- Metallographic Sample Cutting Machine
- Maximum Cross Section of Cut: 50×50mm
- Grinding Wheel Size: 300×2×32mm
- Platen Speed: 2800r/min

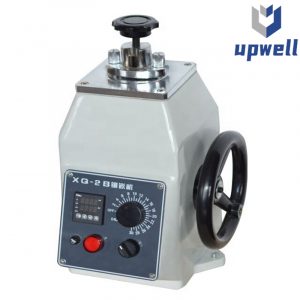

XQ-2 Metallographic Sample Mounting Press Machine
Mount Diameters: Φ22, Φ30, Φ45×15mm
Heater Specification: 650W, 220V, 50Hz
Metallographic Sample Mounting Press

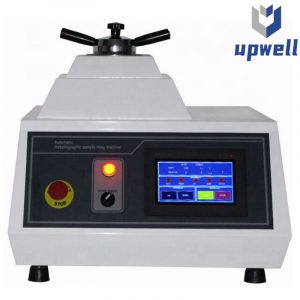

ZXQ-2S Metallographic Sample Touch Screen Automatic Mounting Machine
Die specification Φ25mm, Φ30mm, Φ40mm, Φ50mm Maximum power consumption 1600W System pressure setting range 0~2MPa(Corresponding sample preparation pressure range: 0~72mpa)
