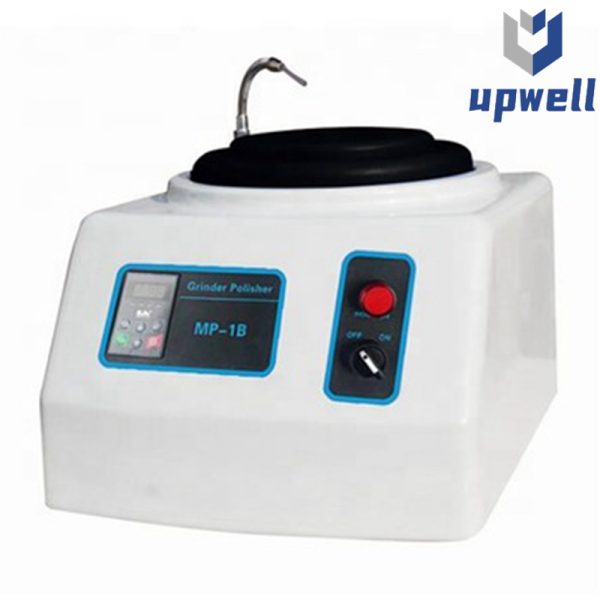

MP-1B Single Disc Metallographic Sample Grinding Polisher with Stepless Speed
- Grinding and Polishing Wheel Diameter: 230mm                  Â
- Abrasive Paper Diameter: 230mm                  Â
- Platen Speed: stepless, 100-1400r/min or four speed 300r/min, 600r/min, 900r/min, 1400r/min
- Single Disc Metallographic Sample Grinding Polisher with Stepless Speed
- Description
- Inquiry
During the preparation of metallographic samples, the grinding and polishing of the sample are essential procedures. The MP-1B grinding and polishing machine is developed and designed through extensively market surveys and listen to operate users’ suggestions and requirements. The dirt collection dish and cover of this machine wholly adopt glass fiber reinforced plastic; it has novel and esthetic appearance, and it is the newest product. This machine combines three kinds of functions together, change the rubbing, polishing or grinding dish can finish all process such as rough rubbing, fine rubbing, dry rubbing, wet rubbing and grinding and polishing of various samples. It can adapt to the preparations of samples of different materials. The diameters of rubbing, polishing, and grinding dish of this machine are greater than the domestic same products’. The rotation speed of rubbing, polishing, and grinding dish is operated independently, can conduct stepless speed regulation; it is the best apparatus of the preparation of metallographic sample.
Main parameters:
Grinding and Polishing Wheel Diameter: 230mm                  Â
Abrasive Paper Diameter: 230mm                  Â
Platen Speed: stepless, 100-1400r/min or four speed 300r/min, 600r/min, 900r/min, 1400r/min
Electromotor: DC brushless motor 400W, 220V
Total Dimension: 420×623×320mm
Net Weight: 30kg
