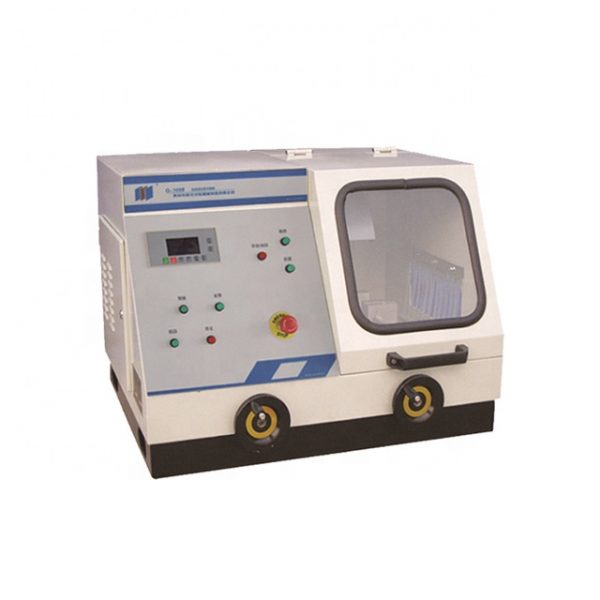

Heavy Duty Automatic Metallographic Specimen Sample Cutting Machine
Heavy Duty Automatic Metallographic Specimen Sample Cutting Machine  can cut round work-piece with diameter within 80mm and rectangular sample with height of 80 mm and deep 160mm.The machine is equipped with a self cooling system for the specimen cooling so as to prevent the damage of the specimen due to overheat during cutting. This machine can also set the cutting speed for cutting different samples, thus improving the quality of cutting samples. It can be used to cut samples manually and automatically. Large volume cutting room is more convenient for cutting. It is one of the necessary equipment for metallographic test in colleges, universities and factories.
- Description
- Inquiry
Power supply | Three phase four wire(380V 50Hz) |
Main shift speed | 2800r/min |
Abrasive disc specification | 250*2*32mm |
Max. Cutting capacity | Φ80mm, automatic cutting speed: 0.1-3.0mm/min |
Automatic cutting mode | Intermittent cutting (large hard work-piece) and continuous cutting (small soft work-piece) |
Max. Cutting volume | 100*200mm |
Motor | 3 phase 380V 50Hz 3KW |
Cutting size | 300*290mm |
Dimension | 850*880*1200mm |
