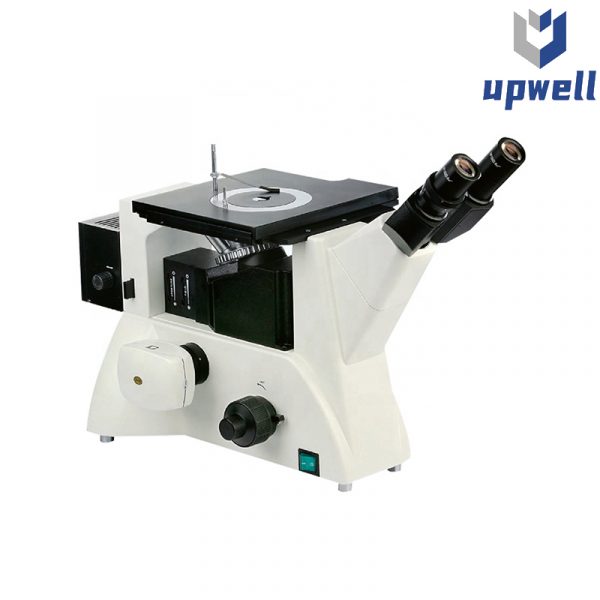

Trinocular inverted metallurgical microscope
- Eyepiece tube 45° inclined, interpupillary distance adjustment range 53~75mm.
- Focusing mechanism Coarse micro-motion coaxial focusing with locking device, jogging lattice value:2μm
- Â Trinocular inverted metallurgical microscope
- Description
- Inquiry
MCM5000W trinocular inverted metallographic microscope adopts excellent infinity optical system and modular function design idea, which can easily upgrade the system and realize the function of polarizing observation and so on. The compact and stable high rigid body fully reflects the anti-vibration requirements of microscope operation. The ideal design meets the requirements of ergonomics, making the operation more convenient and comfortable, and making the space  wider. It is an ideal instrument for metallography, mineralogy and precision engineering study.
Parameter：
| Eyepiece | High view field WF10X |
|  Objective lens (Infinite working distance flat field achromatic objective lens) | PL L10X/0.25 working distance:20.2 mm |
| PL L20X/0.40 working distance:8.80 mm | |
| PL L50X/0.70 working distance:3.68 mm | |
| PL L100X/0.85(Dry)working distance:0.40 mm | |
| Eyepiece tube |  45° inclined, interpupillary distance adjustment range 53~75mm. |
| Focusing mechanism | Coarse micro-motion coaxial focusing with locking device, jogging lattice value:2μm. |
| Nosepiece | Five holes (inward ball positioning) |
| Working stage | Mechanical moving stage, outline dimension:242mmX200mm,moving range: 30mmX30mm. |
| Round rotary stage board dimension: Max outer diameter 130mm. | |
| Illuminating system | 6V 30W halogen lamp,adjustable brightness, suitable for FCM5000 |
| Built-in view field aperture, aperture diaphragm, and plate polarizer | |
| Equipped with frosted glass, yellow, green and blue filters | |
| Metallographic analysis software | Metallographic analysis system JX2015 version |
| 3 million pixel image camera | |
| 0.5XÂ adaptor | |
| Micrometer(Precision 0.01mm) |
