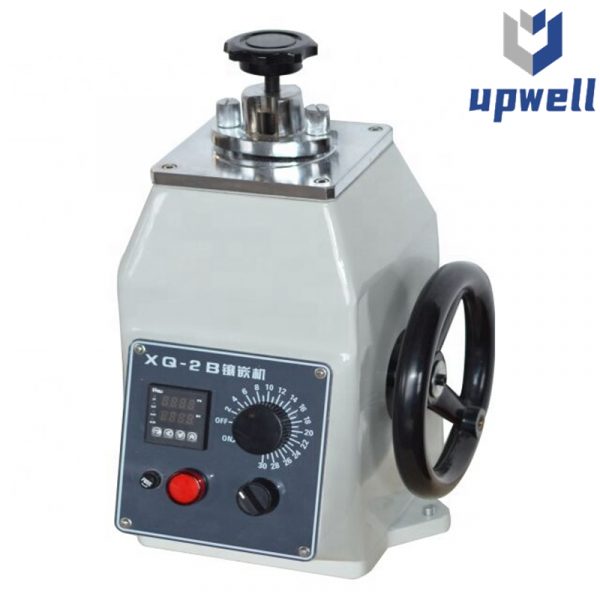

XQ-2 Metallographic Sample Mounting Press Machine
Mount Diameters: Φ22, Φ30, Φ45×15mm
Heater Specification: 650W, 220V, 50Hz
Metallographic Sample Mounting Press
- Description
- Inquiry
XQ-2 Metallographic Sample Mounting Press is designed for mounting small or abnormal-shape and difficult-to-hold samples. Use thermo solidification plastic to mount the sample is prevenient work of grinding and polishing. XQ-1 is a mechanical Mounting Press. Heating is operated by Digital Temperature Controller, all the properties are stable. To operate more safely, XQ-1 is equipped with a fence cover board.
Main parameters:
Mount Diameters: Φ22, Φ30, Φ45×15mm
Heater Specification: 650W, 220V, 50Hz
Total Dimension: 340×260×430mm
Net Weight: 32Kg
