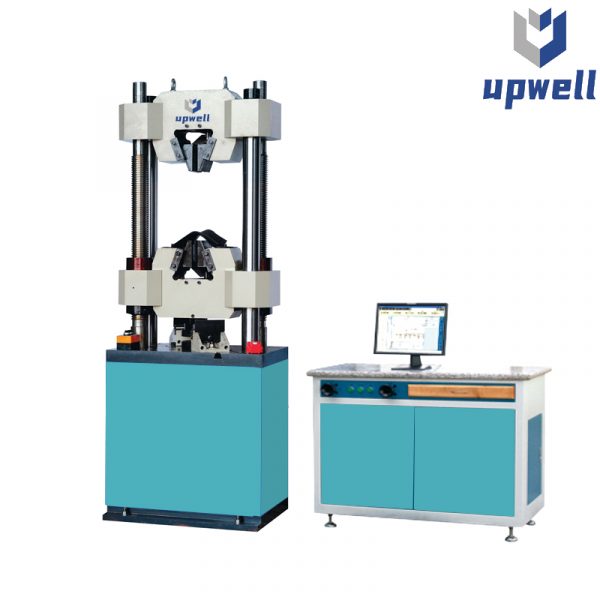

WEW Series Screen Display Type Hydraulic Universal Testing Machine
- Load Capacity:300kN,600kN,1000kN
- Control type: manual
- Test Standard:Â ISO6892, ISO7438, ASTM A370, ASTM E8 etc.
- Testing Material: MetalÂ
- Screen Display Type Hydraulic Universal Testing MachineÂ
- Description
- Inquiry
Introduction：
This series machines are widely used for tensile, compression, bending and shearing test for metal materials and also used for compression and bending test of non-metal materials, like cement and concrete materials.
The machine is calibrated according to ISO 75001 and ASTM E4. It can do many different kinds of test according to international testing standards, like ISO6892, ISO7438, ASTM A370, ASTM E8 and BS EN standards.
 Main technical parameters：
Â
| WEW-300 | WEW-600 | WEW-1000 | |
| Force range (kN) | 6-300 | 12-600 | 20-1000 |
| Accuracy | ±1% of reading value | ||
| Round specimen diameter range (mm) | Φ6-φ26 | φ13-φ40 | φ13-φ60 |
| Flat specimen thickness (mm) | 0-15 | 0-30 | 0-40 |
| Flat specimen width (mm) | 80 | 80 | 120 |
| Tensile space (mm) | 700 | 700 | 750 |
| Compression space (mm) | 600 | 600 | 650 |
| Clearance between columns (mm) | 620 | 620 | 650 |
| Upper and lower compress plates size (mm) | 204×204 | ||
| Distance of bending by pass roll (mm) | 30-450 | ||
| Max. piston stroke (mm) | 250 | 250 | 250 |
| Power supply | 3-phase, 380V±10% ,50Hz | ||
| Work environment | 10-30℃, Relative humidity≤80% | ||
| Dimension of host machine (mm) | 1000×650×2400 | 1000×650×2400 | 1090×700×2580 |
| Dimension of power pack (mm) | 1140×700×930 | ||
| Weight (kg) | 2800 | 3000 | 4700 |
