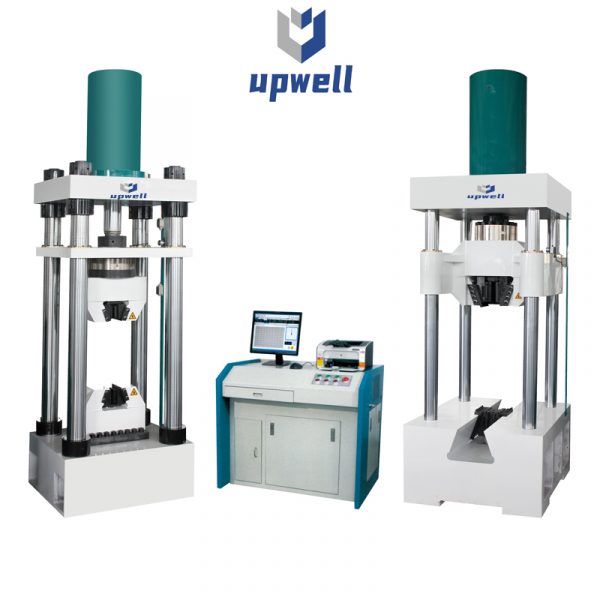

WAL-E Computerized Electro-hydraulic Servo Universal Testing Machine
- Load Capacity:600kN,1000kN,2000kN
-  Oil cylinder mounted on topside,Single test space
- Servo computer control system
- Easy to operation
- Description
- Inquiry
Introduction:
This single testing space WAL-E series machines are newly designed, it has large testing space, all type of tests are executed in the lower testing space, convenient for operation. Quick testing speed improves the working efficiency. It’s an ideal testing machine for large iron and steel manufacturers for daily test of their metal materials. The machine is calibrated according to ISO 75001 and ASTM E4.
Main technical parameters:
Â
| WAL-600E | WAL-1000E | WAL-2000E | |
| Max. testing force (kN) | 600 | 1000 | 2000 |
| Accuracy | ±0.5% | ||
| Round specimen diameter range (mm) | Φ14-φ60 | φ13-φ60 | Φ20-φ70 |
| Flat specimen thickness range (mm) | 0-40 | 0-40 | 0-50 |
| Flat specimen width range (mm) | 70 | 80 | 120 |
| Tensile space (mm) | 700 | 720 | 750 |
| Max. piston stroke (mm) | 680 | 650 | 700 |
| Test speed (mm/min) | 200 | 200 | 200 |
| Power supply | 380V±10%, 50Hz, three phase | ||
| Work environment | 10-40℃, Relative humidity≤80% | ||
| Dimension of host machine (mm) | 1000×780×3160 | 1000×750×3160 | 1280×880×3600 |
| Dimension of control cabinet (mm) | 850×1060×1220 | ||
| Weight (kg) | 4500 | 6000 | 7000 |
