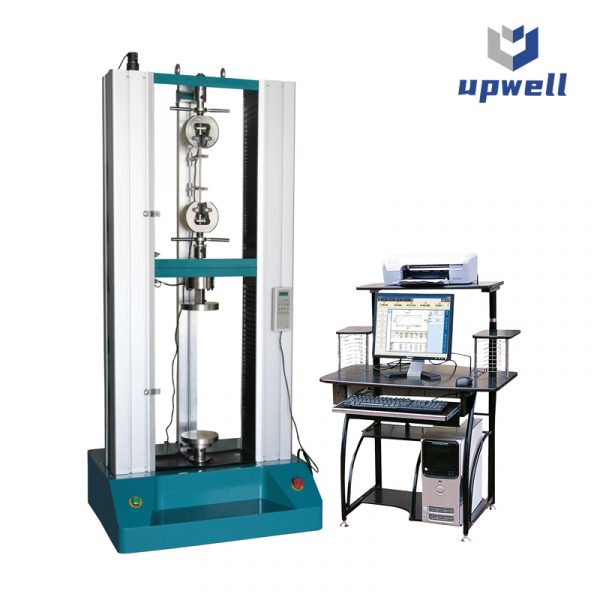

WDW Double Column Computerized Electronic Universal Testing Machine
- Load Capacity: 10nK ,20kN,50nK
- Testing Material:Â rubber, plastic, cable, wire, steel, aluminum, copper, geo-textile, Â thread, wood, alloy, PVC, spring, composite, profiled bar, waterproof roll, etc materials
- Testing Standard :GB, ISO, JIS, DIN and ASTMÂ
Categories: ELECTROMECHANICAL UNIVERSAL TESTING MACHINE Tags: 100kn universal testing machine, copper elongation test equipment, electronic tensile compression testing machine, electronic tensile testing machine, electronic universal testing machine, extensometer rubber tensile testing machine, Flat Spring Testing Machine, Flexible Packaging tensile test machine, Geotextile bursting Testing Machine, leather tensile strength test machine, material Tensile Testing Machine, metal tensile test machine, Plastic Tension Testing Machine, plastic testing machine, Pull Force Testing Machine, PVC Material Tensile Test Machine, pvc material tensile testing machine, sponge tensile testing equipment, tape tensile test machine, tensile and elongation test machine, tensile strength testing equipment, tensile strength testing machine, Tensile Tester, tensile testing machine, textile testing equipment, thin filim strength tester, universal Testing Machine price, UTM Tester, wire tensile tester, yarn tensile tester, yarn tensile testing equipment
- Description
- Inquiry
 Features:
- Computer controlled, load, displacement, extension three closed loop control.
- Table type structure,Double column.
- Real time displays various testing curve, load-time, load-extension, stress-strain, load-displacement, etc.
- It includes many kinds of controlling modes, such as constant force, constant displacement, constant deformation, etc.
- Control software can automatically figure out tensile strength, yield strength, modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.
- Limit position switches protect over stroke, over load protection
- Testing results can be printed by a HP printer
- Computerized Electromechanical Universal Testing MachineÂ
Main technical parameters:
WDW-10 | WDW-20 | WDW-50 | ||
Force Range (kN) | 0.1-10 | 0.2-20 | 0.5-50 | |
Force Accuracy | ±1% | |||
Force Resolution | 1/300000 | |||
Position Accuracy | ±0.5% | |||
Position Resolution (mm) | 0.001 | |||
Test Speed Range | 0.01-500mm/min | |||
Crosshead Travel (mm) | 800 | |||
Space Between Columns (mm) | 400 | |||
Specimen Diameter (mm) | φ4-φ14 | |||
Specimen Thickness (mm) | 0-14 | |||
Power Requirement | 1 phase, 220V±10%, 50Hz | |||
Environmental Requirements | 10-40℃, Relative humidity≤80% | |||
Frame Dimension (mm) | 720×500×1680 | 740×500×1840 | ||
Frame Weight (kg) | 300 | 380 |
