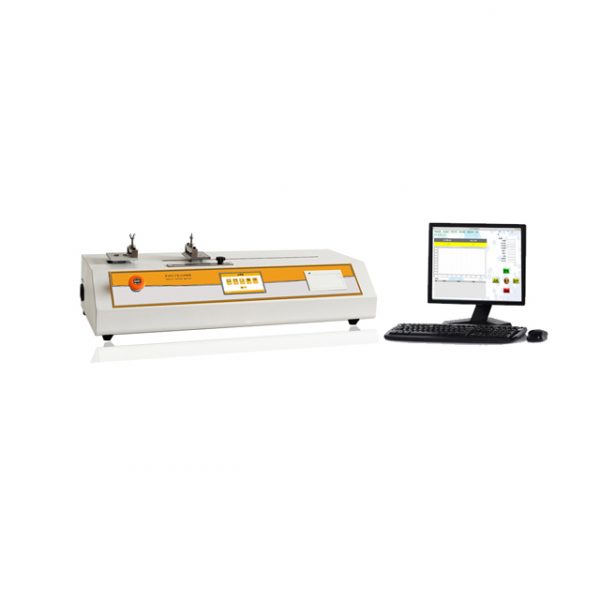

Rubber Plastics Horizontal Test Bed
- Rubber Plastics Horizontal Test Bed
- Load Capacity: 100N,200N,500N
- Test Material:paper, plastic industry, rubber, wire, textiles, latex industry, packaging industry, shoes, hardware industry and the cable industry
- Description
- Inquiry
Introduction：
Horizontal tensile machine as high-precision load cell and digital displays, which is applied to test the strength of material, such as: paper, plastic industry, rubber, wire, textiles, latex industry, packaging industry, shoes, hardware industry and the cable industry, the building materials industry, raw material. The testing result as the reference for improving the products quality.
Technical Parameter:
| WAS-100Â Â Â Â Â Â Â Â Â Â Â WAS-200Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â WAS-500 | |
| Capacity | 100NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 200NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 500N Â Â Â |
| Load accuracy | ±1% |
| Displacement | 280mm |
| Test speed | variable speed, fixed-speed |
| Transmission control | AC motor |
| Power | single-phase 220VÂ 50HZ |
| Volume | 120x20x40cm |
| Fixture | basis on the needs of customers |
| Protector | left and right both protect |
| Display | Â LCD display |
| Resolution | 1/20000 |
| Variable speed | 10-30mm/min        20-120 mm/min      30-180 mm/min   40-230 mm/min     50-280 mm/min       60-320 mm/min      70-360 mm/min      80-390 mm/min      90-415 mm/min |
| Fixed-speed | 50,100,200,300,400 or other |
