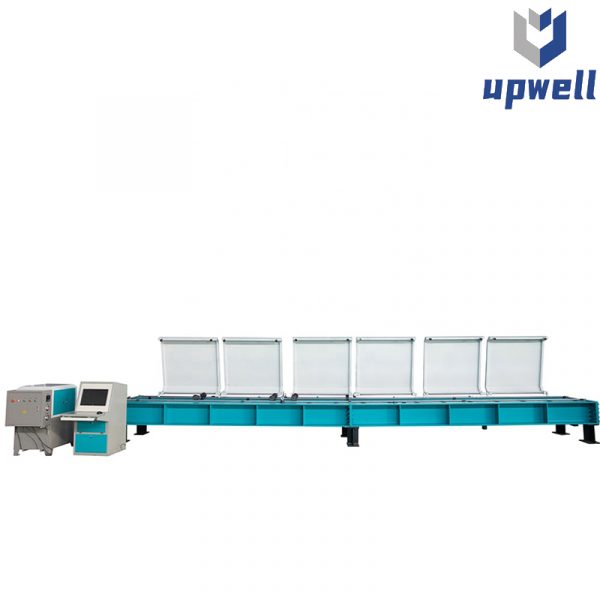

Horizontal Tensile Test Bed
- Horizontal Tensile Test Bed
- Load Capacity:1000kN,2000kN,3000kN
- Horizontal Tensile Test Bed
- Testing Material:steel wire,wire ropes, slings, cables and other lifting tools etc
- Description
- Inquiry
聽Introduction:
This testing machine is mainly used for tension test of long materials, like steel wire rope, cable, nylon rope, chain, etc. It adopts hydraulic cylinder to load, high precision load cell to measure testing force, photoelectric encoder to measure displacement, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer鈥檚 requirement.
Technical Parameters:
| Parameters Model | WAL-1000 | WAL-2000 | WAL-3000 |
| Max. Load | 100T | 200T | 300T |
| Max. Load | 220,000lbs | 450,000lbs | 660,000lbs |
| Accuracy | 0.5 class/1 class | ||
| Load range | 1%-100%FS (no subsection of full travel) | ||
| Testing Space | 3000mm/5000mm/10000mm/can be extended | ||
| Space adjustment | Bolts with each 500mm as per section | ||
| Resolution of deformation | Max. Deformation 1/300000 | ||
| Piston no-loading speed | 200mm/min | ||
| Piston up-loading speed | 0.1-100mm/min | ||
