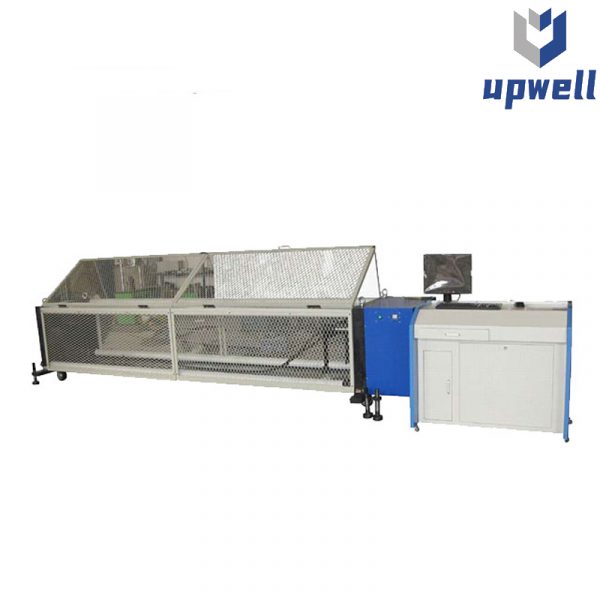

Horizontal Hydraulic Servo Tensile Testing Machine

Horizontal Tensile Test Bed
Load Capacity:300kN,600kN,1000kN
Horizontal Tensile Test Bed
Testing Material:steel wire,wire ropes, slings, cables and other lifting tools etc

Categories: HORIZONTAL TESTING BED, HYDRAULIC UNIVERSAL TESTING MACHINE Tags: Horizontal Hydraulic Servo Tensile Testing Machine

Description
Inquiry

Application:

This machine is mainly designed for tensile strength tests on all kinds of metal component,

anchor chain,hook, wire rope, stopper, electric cable and separating disc.

Main technical parameter:

Model	WAL-300 WAL-600 WAL-1000
Max Load Capacity	300KN 600KN 1000KN
Range of Testing Force	4%-100%
Accuracy of Testing Force	±1%
Relative error of displacement	±1%
Stress speed	1-45Mpa/s
Precision of constant stress	±1%
Stretching distance	0-5000mm(customized)
Piston stroke	1500mm or customized
Method of Specimen Clamping	Bolt way,specially according to the specimen that customer provide.
Control mode	Computer controlled or hand valve control
Effective testing space	Width 750mm or customized
Fixed-way of moving beam	Manual bolt fixed or hydraulic automatic bolt fixed
Power supply	220V/380V, 50Hz
