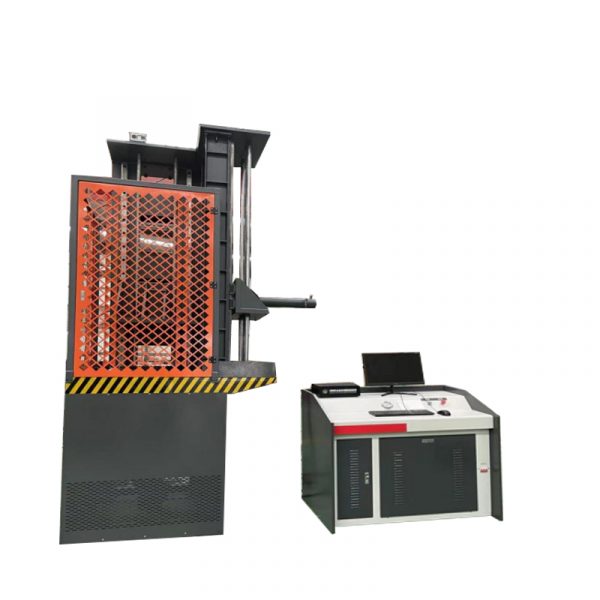

Insulator Bending And Torsion Testing Machine(30kN)

Introduction :

The insulator bending and torsion testing machine is mainly used for bending and torsional load tests of composite insulators, single-section products, etc. Tensile strength, bending load, tensile failure, bending failure load test, bending load test one by one, load deviation test and other bending load mechanical properties tests. mechanical properties while operating in one device.

It can detect technical indicators such as bending force, maximum bending force, torque, and maximum torque in real time, and test curves such as force-deformation, torque-torsion angle, etc. It is widely used in manufacturing enterprises, scientific research institutes, quality supervision and other industries.

Features:

1. The power insulator tensile bending testing machine consists of a servo control system composed of an electro-hydraulic servo valve with a wide speed range, a computer and a measurement and control unit, which can accurately control and measure the whole process of the test;
2. Automatically collect, process and display test data, automatically draw test curves and edit test reports, with the characteristics of high control precision, high measurement accuracy and wide application range.
3. Microcomputer control, electro-hydraulic servo, testing machine fixture can automatically adjust the center.
4. The whole machine is composed of main engine, servo hydraulic source, computer measurement and control system and other parts.

Parameters:

1. Bending load: 30kN
2. Maximum torque: 5kN.m
3. Accuracy level: Level 1
4. Load resolution: 250,000 yards (no division between inside and outside, only one resolution in the whole process, no conflict of range conversion)
5. Load measurement accuracy: within ±1% of the indicated value
6. Workpiece test space: 0-1.5 meters
7. Workpiece diameter range: 0~300mm
8. Diameter of twisting disc: Φ400mm
9. Extendable length of the bending cylinder: 200mm
10. Load speed range: 0～50kN/min
11. Torsion speed: 0～720°/min
12. Select program: 1-point bending or 4-point automatic bending
13. Working conditions: ambient temperature: 20±10°C, relative humidity: ≤85%
