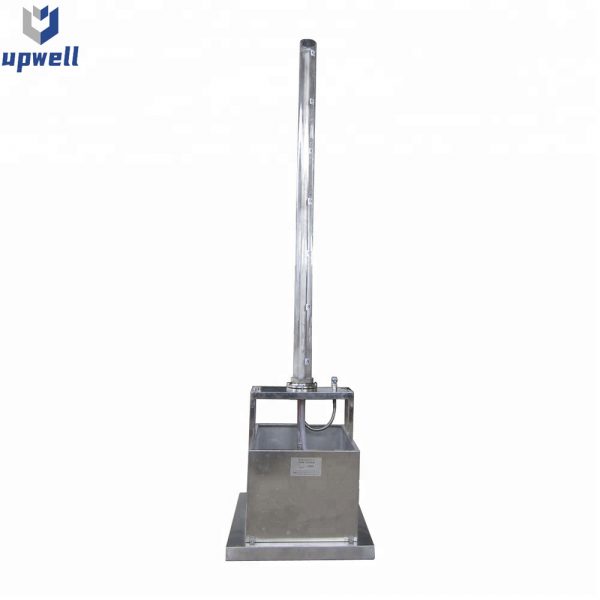

AATCC 35 Rain Tester
Rain Tester聽is used to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath
Related Testing Standard:AATCC 35
- Description
- Inquiry
Application:聽
Rain Tester聽is used to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized bolting paper which is weighted before and after each test. The rain is formed by a column of water and applied via a standardized nozzle.
Features:
Water column height can be adjusted from 600mm (24in) up to 2400mm (96in) increased by 300mm (12in) each time.
Spray distance adjustable form 0mm to 500mm (20in).
Rain Tester Parameter:
| Water column height | 600mm聽(24in) ~2400mm (96in)聽聽 in 300mm 聽 (12in) increment |
| Nozzle hole diameter | 0.99mm卤0.03mm |
| Nozzle hole number | 13 |
| Spray distance | 0~500mm(adjustable) |
| Dimension | 950脳600脳3250mm(L脳W脳H) |
