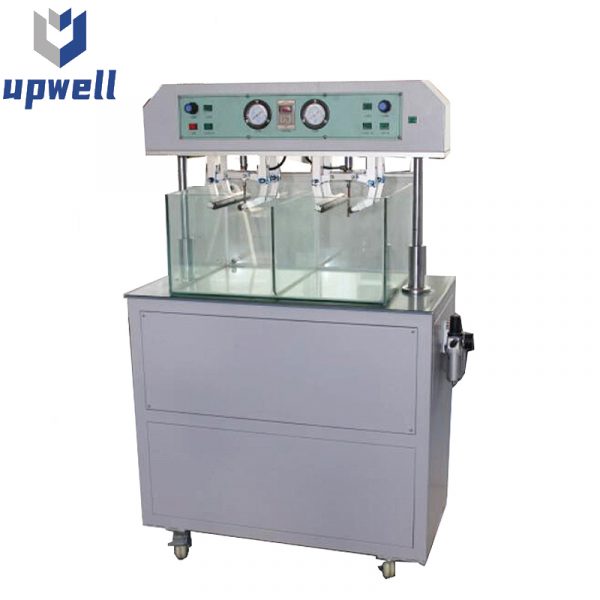

EN ISO 20344 Shoe Socks Water Proofness Water Penetration Testing Machine
Shoes Water Penetration Test Apparatus 聽is used to test waterproof performance of rubber face and shoes lining of rubber shoes.
Related Testing Standard:EN ISO 20344
- Description
- Inquiry
Shoes Water Penetration Test Apparatus 聽is used to test waterproof performance of rubber face and shoes lining of rubber shoes. The pneumatic clamps seal the specimen and to clamp the specimen into the water, while certain air pressure filled into the samples, if the sample seepage, it will immediately generate bubbles. When reach the set time, the clamp with the sample automatically lift out of the water.
Features:
1,聽Clamps automatically clamp and lift;
2,聽 Samples are automatically inflated;
3,聽 Test time can be set freely;
4,聽Good sealing of sample by clamps.
Key Specification:
Number of working position | 2 |
Range of air pressure | 0~50kPa (adjustable) |
Timer range | 0~999 s |
Dimension聽聽 | 1050脳560脳1500mm (L脳W脳H) |
Weight聽聽聽聽 | 128kg |
Power supply | 500W, 220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required) |
