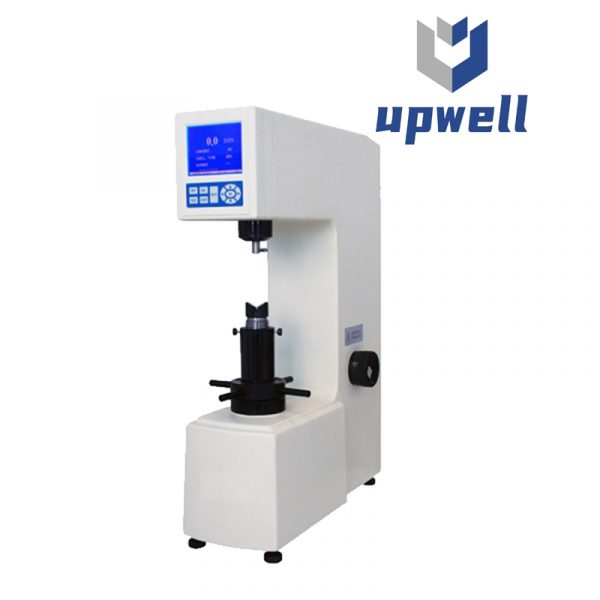

HRMS-45 Digital Superficial Rockwell Hardness Tester

HRMS-45 Digital Superficial Rockwell Hardness Tester

Categories: Tags:
  • Description
  • Inquiry

Applications:

HRMS-45 is a half automatic and intelligent superficial Rockwell testing machine with high accuracy, reliability and durability. It is applied at workshops and measurement department for determining the superficial Rockwell hardness of the ferrous and non-ferrous metals.

Technical specifications

Rockwell ScalesHR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Initial Test Force3kgf (29.42N）
Test Force15kgf (141.7N), 30kgf (294.2N), 45kgf (441.3N)
Dwell TimeAdjustable 1-60s
 Hardness IndicationDigital LCD Display
Loading ControlAutomatic
Date OutputRS 232/ Printer
Max Height of Specimen175mm
Instrument Throat165mm
Execution StandardGB/T230.2, JIG112, EN-ISO6508, ASTM E-18
Overall Dimension520×215 ×700mm
Net Weight73kg
