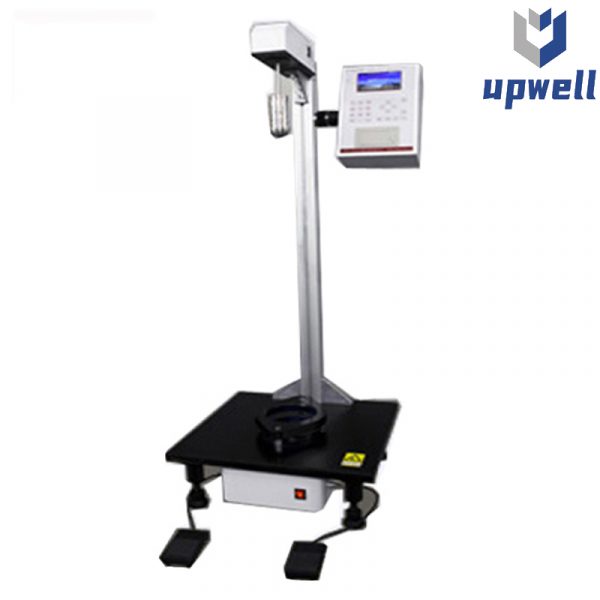

JIS K7124,ASTM D1709 Digital type Free Fall Darts Impact Tester
Fall darts impact tester apply to plastic film or chip which thickness less than 1mm impact by fall darts in a given great freedom to fall, test the impact quality and energy were when 50% plastic film or chip was damaged.
Testing Standard:JIS K7124,ASTM D1709
- Description
- Inquiry
Product Introduction:
Digital type Free Fall Darts Impact Tester apply to plastic film or chip which thickness less than 1mm impact by fall darts in a given great freedom to fall, test the impact quality and energy were when 50% plastic film or chip was damaged.
Product Feature:
- National standards and international standards are compatible
- Mechanical modelling novel, operation design thoughtful
- Test method A and B, dual mode design
- Unique lighting observation lamp,testing convenient and quick
- The test data micro process
- The test process intelligent, improve working efficiency
- Sample pneumatic clamping, release, reduce the test error and test time
- The test process without the artificial drawing mark, data parameter system liquid crystal display
- The test data automatic identification system, calculation, without human intervention
- Test to be automatic end, the results showed many units, the play output by computer.
Technical Parameters:
Measuring range | A:50~2000g     B:300~2000g |
Measuring accuracy | 0.1g (0.1J) |
Test condition | 23°C,50%RH (standard) |
Sample clamping | pneumatic |
Sample size | >150mm×150mm |
Power | AC220V50Hz |
Net weight | 70kg |
Contour dimension | A method:500(L)mm×450(B)mm×1320(H)mm |
Standard configulation | B method: 500(L)mm×450(B)mm×2160(H)mm |
A method configuration | |
Option | B method configuration |
(Note: air users should bring by users) |
