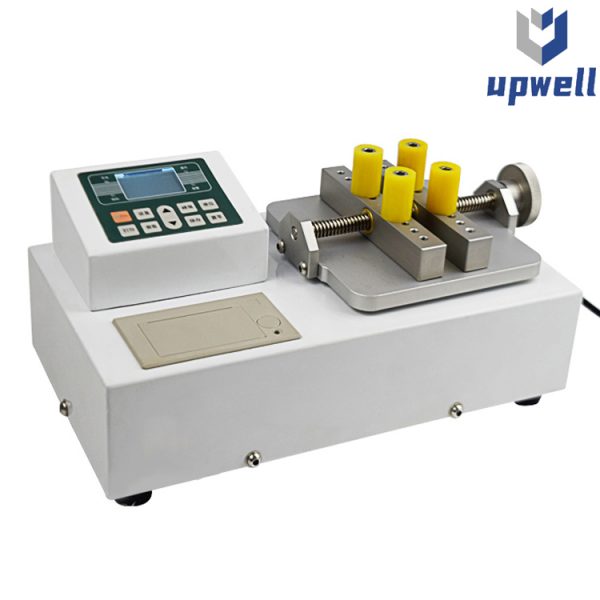

Digital Plastic bottle Cap Torque Tester
This tester聽is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc.
- Description
- Inquiry
Introduction
it is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It鈥檚 widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Feature
1)High precision, high resolution, quick sampling speed, full-screen display.
2)Adopting high precision torque sensor, with torque direction display.
3)Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4)Three units can be switched each other (N路m,kgf路cm,Ib路in).
5)Real-time, peak, automatic peak three models of optional switch.
6)Use USB interface and PC communications, synchronous test function can connect to 7)the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
8)Peak holding, remove automatically function, remove time to set freely.
9)Large storage, can save 99 groups of test data.
10)Without automatic shutdown function, time can be set freely.
Application
It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. It鈥檚 widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Parameter
Type
Index | With聽printer | UW504A | CY504B | CY504C | CY504D | CY504E | |
No聽printer | CY504AP | CY504BP | CY504CP | CY504DP | CY504EP | ||
Capacity | 1N.m | 2N.m | 5N.m | 10N.m | 20N.m | ||
Resolution | 0.0005N.m | 0.001N.m | 0.002N.m | 0.005N.m | 0.01N.m | ||
Sensor聽Conformation | Sensor聽Inside | ||||||
Accuracy | 卤0.5% | ||||||
Dimension | 350脳200脳160mm | ||||||
Weight | 12.5KGS |
