Pipe Hydrostatic Pressure Testing Machine Used to determine thermoplastic pipes (such as PE pipes, PP-R, PP-B, PE-X, PERT, PVC, PVC-U, PVC-M, steel mesh frame reinforced pipes, and aluminum-plastic composite pipes and other pipes) Resistance to internal pressure destruction test under constant internal pressure and constant temperature for a long time. The equipment is a fully automatic unattended working mode, and the operator can leave after loading the sample. The experiment is automatically terminated when the experiment time is reached. The experiment curve and data are automatically recorded. If the sample is damaged in the middle, the experiment will be automatically terminated.

This testing machine adopts advanced control algorithm, loading pressure smooth, hold pressure stable, swelling rate high, which can ensure 100% success of test.

Characteristics

This testing machine is composed of host machine (pressure control system), constant temperature water tank and professional end enclosure (end cap) three parts. Among them, the constant temperature water tank and professional end enclosure can be connected with different host machine, it can work together to complete the test.

Standards:

Conforms to various national and international standards:

ISO1167、ISO9080、EN921、ASTMD1598、ASTMD1599  ISO13479

Main Technical Parameters

Host Machine

• Pressure range: 0.2MPa -10MPa, other pressure unit is available like Bar,PSI Independent control of test pressure and test time
• Resolution of pressure testing: 0.001MPa, 1PSI,01Bar
• Pressure: 0-250bar Flow Volume: 15-18L/min  Three plunger diameter: 16mm
• Accuracy of pressure control: -1% ~+2%
• Testing pipe: φ20 -φ630mm
• Test station: 3 stations (standard supply) or evenmore
• Time range: 0 – 10000h, positive timing or countdown, minimum setting time gradient 1
• Power supply of host machine: 1- phase, 220V±10%, 50Hz,5kW
• Power supply of pressure station: 3-phase, 380V±10%, 50Hz,5kW
• Dimension of host machine (L×W×H):580×550×1330mm
• Dimension of pressure station (L×W×H):480×800×890mm

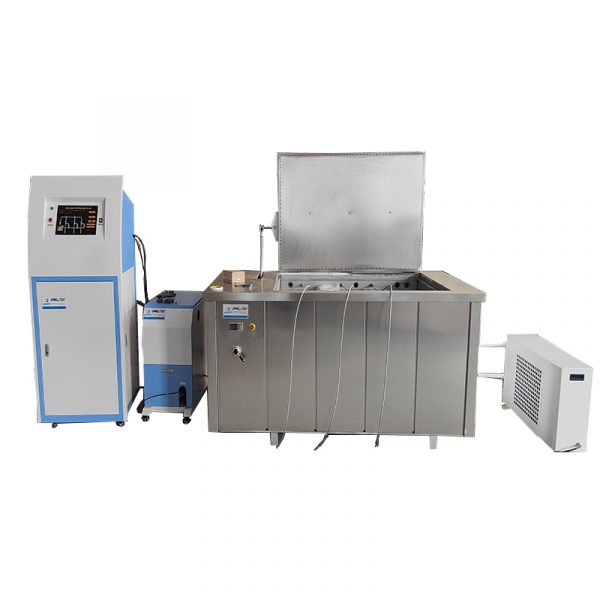

Plastic Pipe Hydrostatic and Burst Testing Machine

Constant temperature water tank(With Cooling Function)

• Control range of water temperature: 20~95℃
• Accuracy of control water temperature: ±0.1℃
• Uniformity of water tank body: ±1℃
• Intelligent water compensation fluctuation: <0.1 ℃
• Inner container material: 304 stainlesssteel
• Tank cover open method: pneumaticoperated
• Water compensation method: intelligent autocompensation
• With Cooling Device Cooling  Power 3HP
• Forced water circulation system, automatic water replenishment function
• Power: 3-phase, 380V±10%, 50Hz
• Dimension of inner water tank (L×W×H):2400*900*900mm

Plastic Pipe Hydrostatic and Burst Testing Machine water tank

End enclosure (caps)304 Stainless steel

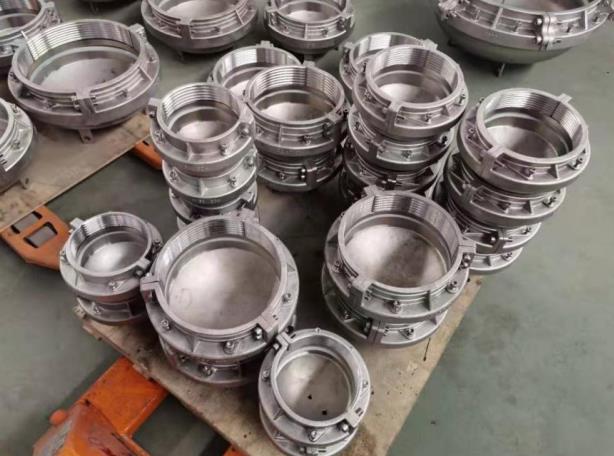

End caps are designed for internal hydrostatic pressure testing of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample, with the characters:

• Casting A-type structural fixture, without intermediate tie rods, has super high pressure resistance.
• The structure realizes the assembly method of clamping first and then sealing, and the success rate ofclamping and sealing at one time reaches 100%.
• Radial seal, suitable for a wide range of pipes (applicable to PE, PVC, PP-R, steel-lined composite pipes, etc.
• Split type clamping structure, easy to install, can realize automatic centering.
• Large-diameter clamps are suitable for a wide range of pipe diameters. The sample does not need to be reshaped before the test, and it can be easily inserted into the head
• The clamp is light in weight, and the individual components are equipped with hoisting devices, which are convenient to carry, convenient and quick to test and assemble, without special clamping devices, high work efficiency and low long-term use costs. The assembly time of the test fixture for large pipe diameters above Φ200 needs to be less than 30 minutes, and the assembly time for tools of Φ200 and below needs less than 10 minutes
• The casting fixture is made of high-quality 304 stainless steel material, which is pickled and passivated after casting, which has super anti-corrosion ability and long service life
• The unique lifting chain device avoids the problems that the thin-walled tube sample is broken and the bottom clamp is difficult to lift; the hooks for the clamps are provided for easy suspension
• There is a permanent mark on the fixture to indicate the model information.
• The model of the radial outer sealing fixture

Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ180, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630,
