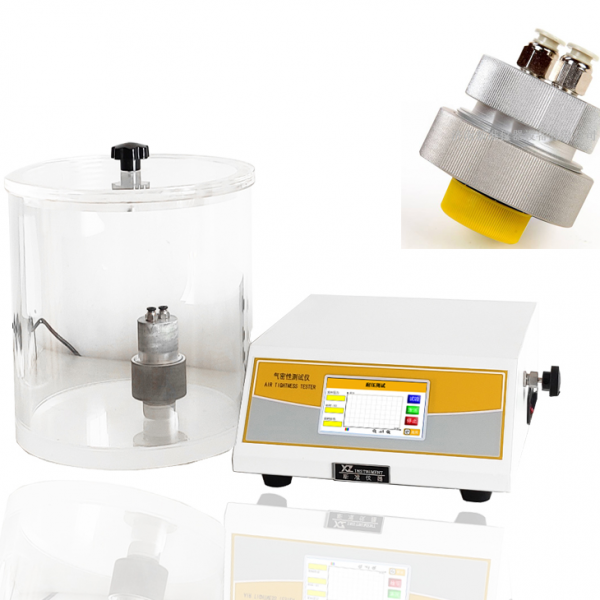

Plastic Packaging Bag Negative pressure Leak Tester
- Plastic Packaging Bag Sealing Tester
- Vacuum Degree 0- 90kPa
- Gas Supply Pressure 0.5MPa~0.7MPa
- Description
- Inquiry
Introduction
The tester is applicable in testing the seal of soft packaging in food and pharmaceutical industry. It can test the seal capability of soft packaging accurately, which provides scientific data for relative technical requirement. It also can test the specimen which has done the drop and compression test. The product is designed and manufactured according to GB/T15171-94 (the Seal Testing Method for soft packaging).
Technical specifications
Vacuum Degree | 0- 90kPa |
Vacuum Accuracy | 1FS |
Gas Supply Pressure | 0.5MPa~0.7MPa |
Vacuum hole time | 0-60min |
Vacuum room size
| Φ270 mm x 210 mm (H) (Standard) Φ360 mm x 585 mm (H) (Optional) Φ460 mm x 330 mm (H) (Optional) |
Overall tester size | 430mm x 330mm x 170mm (L x W x H) |
N.W. | 9KG |
Air Pressure | 0.5-0.9KPa |
Temperature | 15℃-50℃ |
Relative Humidity | No more than 80%, no dewdrop |
Power Supply | 1-phase, 220V, 50Hz |
