WDW-50S Computerized Ring Stiffness Testing Machine
- Load Capacity :50 kN

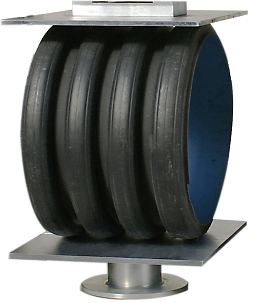

- Testing Material:ring stiffness, ring softness and it’s inner deformation of plastic pipe
- Testing Standard: ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4
- Computerized Ring Stiffness Testing Machine
- Description
- Inquiry
Introduction:

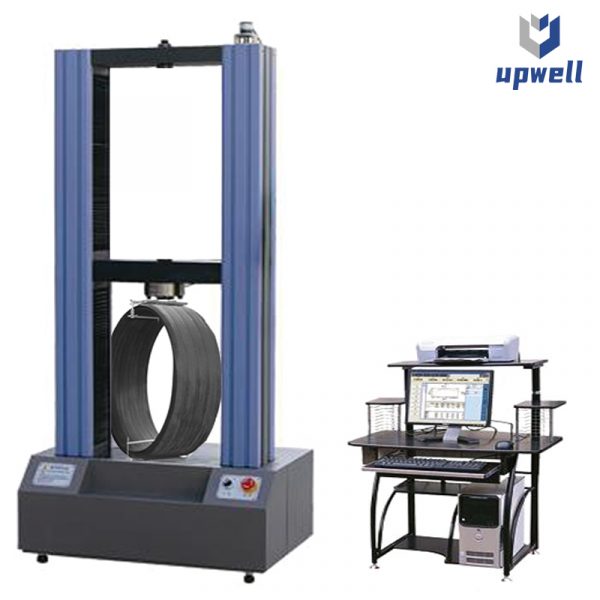

This WDW-50S Computerized Ring Stiffness Testing Machine adopts double columns and tabletop type structure, it is used to test the ring stiffness, ring softness and it’s inner deformation of plastic pipe. It also can do tensile strength and elongation test, bending test by adding relative test accessory.
The machine can meet ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4 standards and so on.
Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. The PC controlling system can also realize the close-loop control of the parameters such as loading force, specimen deformation, and crosshead stroke etc. They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.
Main technical parameters
WDW-50S | |
Range of Testing Force | 0.4kN- 50kN |
Max Load Capacity | 50kN |
Accuracy of force | ±0.5% |
Relative error of displacement measuring | ±0.5% |
Resolution of crosshead displacement | ≥0.01mm |
Crosshead moving speed | 0.01-500mm/min |
Effective compression testing space | 500mm (max. OD 500mm) |
Width of testing space | 400mm |
Power supply | 1-phase, 220V±10%, 50Hz |
Work environment | 10-40℃, Relative humidity ≤ 80% |
Dimension size L*W*H | 760×500×1800mm |
Weight | 450kg |
