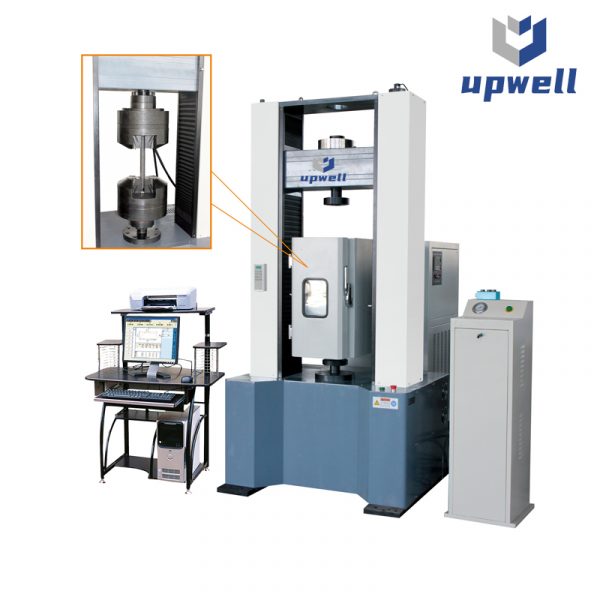

WDW T Series Computerized Electromechanical Universal Testing Machine 500kN 600kN
- Load Capacity :500kN 600kN large load capacityÂ
- Testing Material: Metal
- Can equipt with the environmental chamberÂ
- Automatic hydraulic jaws
Categories: ELECTROMECHANICAL UNIVERSAL TESTING MACHINE Tags: Computer Control Testing Machine, foam tensile testing equipment, High Temperature Tensile Testing Equipment, Lab Tensile Testing Machine, matal material testing machine, material Tensile Testing Machine, metal tensile test machine, Plastic Tension Testing Machine, pvc material tensile testing machine, wire tensile tester
- Description
- Inquiry
Introduction :
WDW Series Computerized Electromechanical Universal Testing Machines are applicable for tensile, compression, bending test of metal materials and non-metal materials. The machine is calibrated according to ASTM E4 and ISO75001 international standard. They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.
Main Technical Parameters:
                                    | WDW-500E | WDW-600E | |
Force Range (kN) | 1~500 | 1.2~600 | |
Force Accuracy | ±0.5% of applied force | ||
Force Resolution | Max. testing force 1/300000 | ||
Position Accuracy | ±0.5% | ||
Position Resolution (Ï…m) | 0.03 | ||
Position Reading Value (mm) | 0.001 | ||
Test Zones | Dual (upper for compression / bending, lower for tensile) | ||
Test Speed Range | 0.01mm/min~200mm/min, servo control | ||
Strain Accuracy | ≤±0.5% | ||
Strain Measuring Range | 2%~100% | ||
Crosshead Travel (mm) | 680 | 600 | |
Compression Space (mm) | 600 | 580 | |
Space Between Columns (mm) | 580 | 650 | |
Jaw dimension (mm) | flat thickness | 0~20 | 0~20 |
round diameter | φ9~φ26 | φ9~φ26 | |
Power Requirement | Three phase, 220/380V±10%, 50/60Hz | ||
Environmental Requirements | Room temperature~40℃, relative humidity <80% | ||
Frame Dimension (mm) | 1020×800×2180 | 1020×800×2180 | |
Frame Weight (kg) | 1100 | 2000 |
