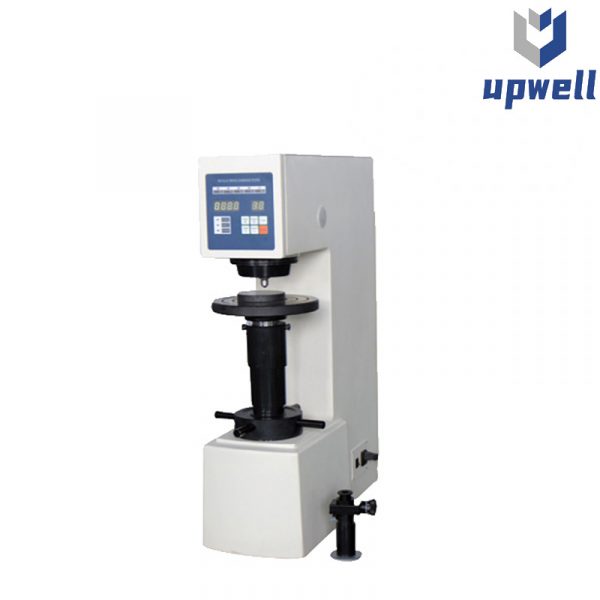

DHB-3000 Electronic Brinell Hardness Tester

Digital Brinell Hardness Tester
dhb-3000-electronic-brinell-hardness-tester

DHB-3000 Electronic Brinell Hardness Tester

Electronic Brinell Hardness Tester

Categories: Tags:
  • Description
  • Inquiry

Applications:

DHB-3000 Electronic Brinell Hardness Tester adopts is an affordable electronic hardness tester with high accuracy, reliability and durability. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.

Technical specifications

Test Force612.9N (62.5kgf)         4900N (500kgf)

980N (100kgf)           7355N (750kgf)

1226N (125kgf)          9800N (1000kgf)

1839N (187.5kgf)        14700N (1500kgf)

2452N (250kgf)          29400N (3000kgf)

Testing Range8-650 HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope20× Mechanic Microscope
Max Height of Specimen220mm
Instrument Throat135mm
Power SupplyAC220V/50Hz
Execution StandardGB/T230.2, JIG112, EN-ISO6508, ASTM E-18
Overall Dimension753×542 ×205mm
Net Weight130kg



Accuracy of Brinell Hardness Testing

Hardness RangeMax. ToleranceRepetition
HBW≤125±3%±3%
125<HBW≤225±2.5%±2.5%
HBW＞225±2%±2%
