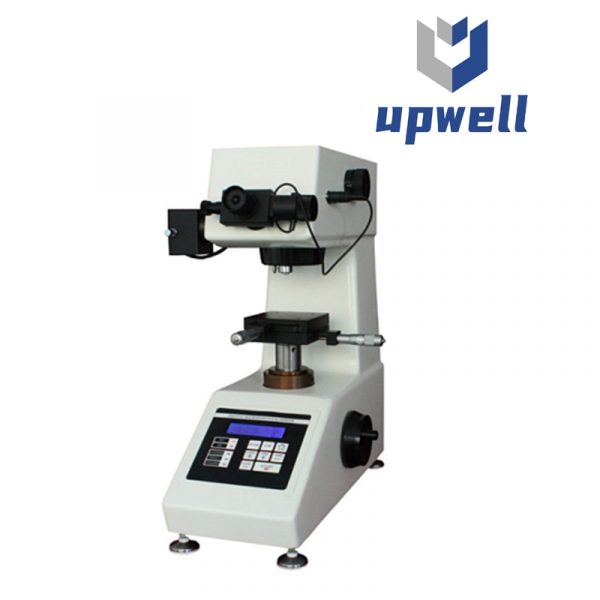

DHV-1000 Economic Digital Micro Vickers Hardness Tester

DHV-1000 Economic Digital Micro Vickers Hardness Tester

Categories: HARDNESS TESTER Tags: 1000kgf Vickers Hardness Tester

Description
Inquiry

Applications:

DHV-1000 Micro Vickers Hardness Tester is a digital display economic hardness tester, it’s integrated the technology of optics, mechanics and computer. It’s has LCD screen, easy operation.

Technical specifications

Test Force	gf	10, 25, 50, 100, 200, 300, 500, 1000
	N	0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80
Indentation Measurement	Digital Sensor Measurement
Loading Control	Automatic (loading, dwell, unloading)
Magnification of Microscope	Observation: 10×; Measurement: 40×
Magnification of Eyepiece	10× Eyepiece
Dwell Time	Adjustable 0-60s
Testing Range	1 HV- 2967 HV
X-Y Anvil	Size: 100×100mm, Travel: 25×25mm, Resolution: 2μm
Illumination	Adjustable LED light- source (Halogen is optional)
Max Height of Specimen	100mm
Instrument Throat	98m
Power Supply	AC 220V, 50Hz
Execution Standard	GB/T4340.2, EN-ISO6507, ASTM E10-18, ASME-384
Overall Dimension	480×305 ×545mm
Net Weight	30kg
