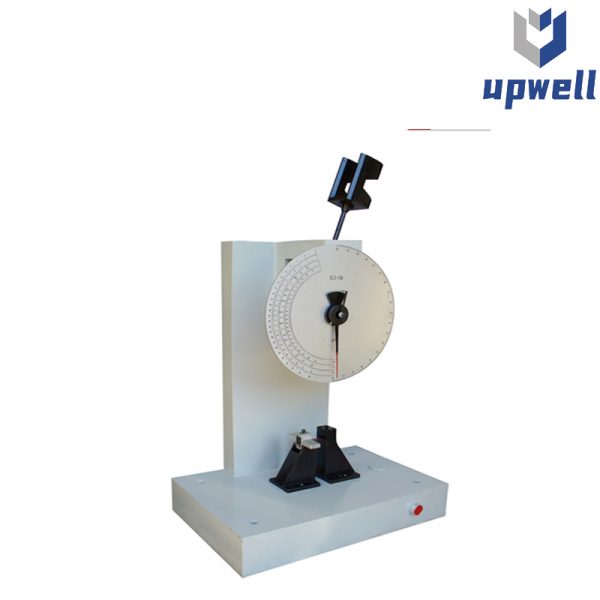

Dial Charpy Impact Tester
- Test Standard:ISO179
- Impact energy:7.5J, 15J, 25J, 50J
- Dial Charpy Impact Tester
- Description
- Inquiry
Product Description
Charpy impact tester can be used determine the impact ductility of nonmetallic materials, such as Rigid thermoplastic and thermosetting plastic, thermosetting plastic and thermoplastic after fiber-reinforced.
It is widely used in the industries of plastic products, plastic manufacture, petro chemical etc, University, scientific research institute and commodity inspection department.
Conform with standard: ISO179.
Technical specifications
| Model | XJJ-5 | XJJ-50 |
| Impact energy | 1J, 2J, 4J, 5J | 7.5J, 15J, 25J, 50J |
| Impact speed | 2.9m/s | 3.8m/s |
| Pendulum initial angle | 150° | 150° |
| Specimen span | 40, 60, 70, 95 (mm) | |
| Display type | Dial analog display | |
| Specimen clamping type | Charpy | |
| Standard Accessories | Load frame, pendulum(1J, 2J), (4J, 5J), supporting vice jaws, specimen centering plate, spanner, manual etc. | Load frame, pendulum(7.5J, 15J, 25J, 50J), moving supporting base, specimen centering plate, spanner, manual etc. |
