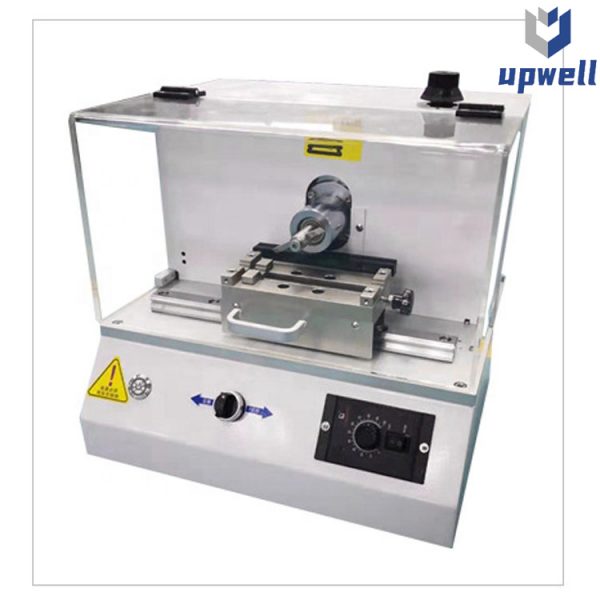

ISO 180 ISO 179 ASTM D256 Full Automatic Sample V Notch Cutting Cutter Machine
The plastic electric notch broaching machine is a sample preparation device for the notched sample used in the impact toughness test of the non-metallic material by the cantilever beam and the simply supported beam type impact tester.
- Description
- Inquiry
Product introduction The plastic electric notch broaching machine is a sample preparation device for the notched sample used in the impact toughness test of the non-metallic material by the cantilever beam and the simply supported beam type impact tester. The impact notch sampler equipment can be used for the production of notched specimens by laboratories of scientific research institutions, colleges and universities, non-metallic materials production plants, etc.
Technical Parameters
| Motor speed | 300r/min |
| Tool stroke | 10mm |
| Tool feed | 0-2.5mm optional |
| Speed of feed | 20-30mm/min |
| Feed stroke | 100mm |
| Tool type parameters | A type: 45掳卤1掳 R锛0.25卤0.05 B type: 45掳卤1掳 R锛1.0卤0.05 C type: 45掳卤1掳 R锛0.1卤0.02 |
