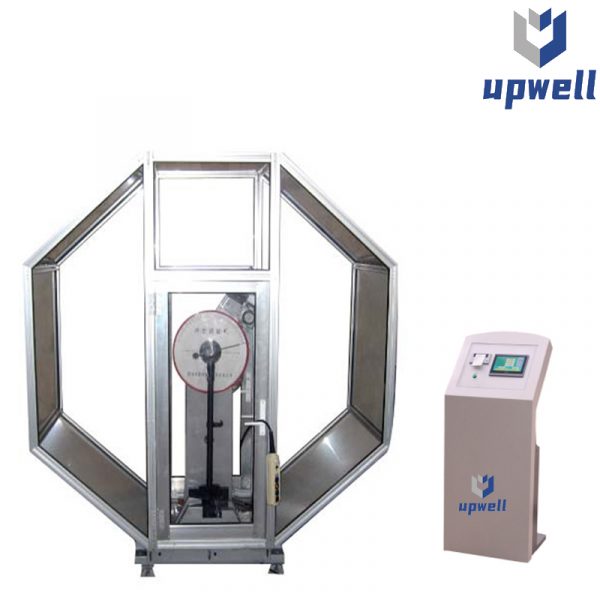

JBS-C Digital Display Pendulum Charpy Impact Testing Machine
- Impact energy (J) :300J,500J,750J
- Testing standard:ASTM E23, ISO148-2006Â and GB/T3038-2002, GB/229-2007.
- Control Type:Touch screen
- Charpy Impact Testing MachineÂ
- Description
- Inquiry
Application & Features:
JBS-C Digital Display Pendulum Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. They are the best testing equipments for many metal material manufactories, quality inspection departments and universities. The results will be displayed on both digital screen and dial gauge. JBS-B series impact testers can use pendulum’s residual impact energy to achieve the re-raising of pendulum, so as to save energy. The results can be printed out, be applicable for mass testing departments.
Main Technical Specifications:
JBS-300C | JBS-500C | JBS-750C | |
Impact energy (J) | 150,300 | 250,500 | 500,750 |
Impact velocity (m/s) | 5.2 | 5.4 | 5.9 |
Raised angle | 150º | ||
Standard span (mm) | 40 | ||
Distance between pendulum rotating center and specimen center (mm) | 750 | ||
Round angle of jaws (mm) | R1-1.5 | ||
Round angle of striking edge (mm) | R2-2.5Â (R8 is optional) | ||
Size of specimen (mm) | 10 x 10 x 55 | ||
Power supply | 3phs, 380V, 50Hz/60Hz or specified by users | ||
Dimensions (mm) | 2124x600x1340 | 2144x736x1390 | 2450x1200x2455 |
Net Weight (kg) | 450 | 650 | 2300 |
Display | LCD Monitor |
