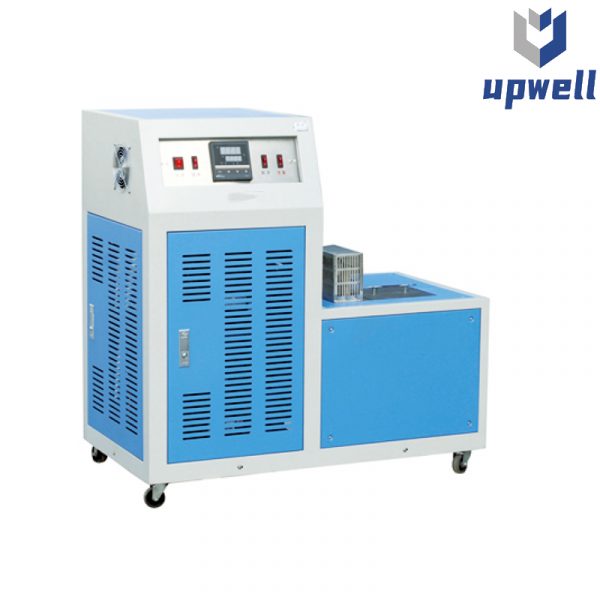

CDW Charpy Impact Test Specimen Low Temperature Chamber
- Charpy impact test sample low temperature chamber
- Low temperature chamber
- Temperature Range:30℃, -60℃, -80℃.
- Description
- Inquiry
Application & Features:
This Low Temperature Chamber is used for cooling the temperature of charpy impact specimen. The cooling temperature includes -30℃, -60℃, -80℃.
The machine adopts overlap compressor refrigerating technique. It uses a cycle mixing method following heat balance principle to automatically and equably cooling sample and keep temperature. It uses the high precision self-adjusting instrument and platiniridium sensor. It has high precision, high resolution, easy operation and high working efficiency characters.
Main Technical Specifications:
| Model | CDW-30 | CDW-60 | CDW-80
|
| Range of cooling temperature | -30℃~30℃ | -60℃ ~30℃ | -80℃ ~30℃ |
| Precision of Temperature control | ≤±0.5℃ | ||
| Precision of instrument resolution | 0.01℃
| ||
| Cooling medium | Ethanol or other non freezing solution | ||
