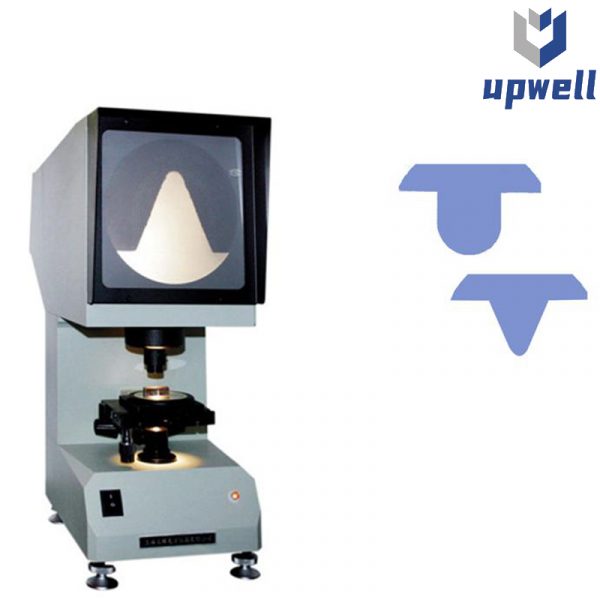

CST-50 Charpy Impact test specimen Projector
- CST-50 Charpy Impact test specimen Projector
- Test Stanard:ISO 148 ,ASTM E23
- U notch and V notch specimen quality check
- Description
- Inquiry
Application & Features:
It is designed according to the request of impact sample gap in ISO 148 ,ASTM E23 鈥淢etal Charpy Impact Test Method鈥. It is an important special testing instrument to test if the impact sample gap is eligible. According to optical projection principle, the machine compare聽the impact sample V type gap to standard map and judge if the sample is eligible. The operation is simple, direct, high efficient. So it is necessary testing instrument to machining the impact sample.
Main Technical Specifications:
Magnification: 50脳
Projector screen size: 肖200mm
Table displacement: vertical 卤10mm锛宧orizontal 卤10mm锛
up and down 卤12mm
Rotate range of table: 0聽~360掳
Light: halogen and tungsten 12V, 100W
