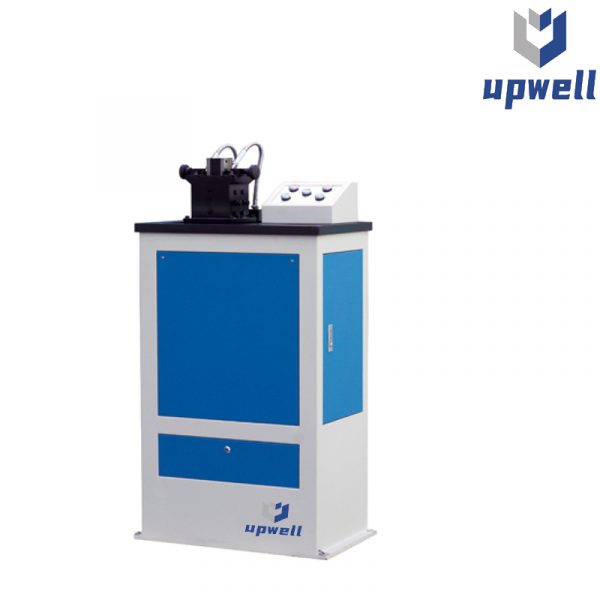

CSL Charpy Impact Sample(Specimen) Notch Broaching Machine
- Metal Charpy (V type,U type) Gap Impact Test Specimen Making MachineÂ
- Testing Standard:ASTM, E23-02a, EN10045, ISO148, ISO083
- Charpy Impact Sample Broaching MachineÂ

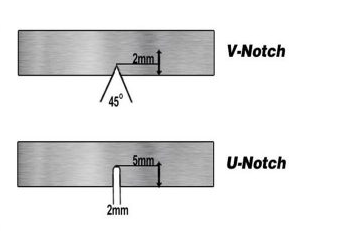

- U notch and V notchÂ
- Description
- Inquiry
Application & Features:
Notch broaching machine is a very useful tool for process V notch and U notch of charpy impact specimen.
Due to one-time completing broaching, the identity of machining notch is very good. The series of machine can be divided into two kinds, manual type and electric type. V type are all made with W18Cr4V material to assure its high rigidity, good wearable. Each broach can be used for about more than 20000 times.
Main Technical Specifications:
| Model | CSL | |
| Cut mode | Electric type | |
| Shape of sample gap | Â Â V notch and U notch | |
| Sample size | 10×10×55mm | |
| Broach moving distance | 350mm | |
| Broach material | W18Cr4V | |
| Dimensions of host machine | 580×400×1140mm | |
| Net weight | 200kg | |
