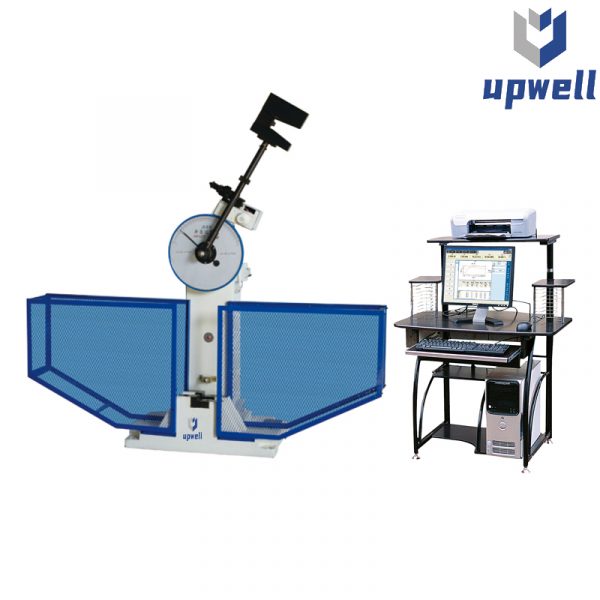

JBW-B Computer Display Pendulum Charpy Impact Tester
- Control Type:Fully Computer ControlÂ
- Impact energy (J) :300J,500J,600J,750J
- Testing standard:ASTM E23, ISO148-2006Â and GB/T3038-2002, GB/229-2007.
- Charpy Impact Testing MachineÂ
- Description
- Inquiry
Application & Features:
JBW-B Computer Display Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JBW-B series impact testers are adopted by many institutes and high-tech enterprises.
Main Technical Specifications:
| JBW-300B | JBW-500B | JBW-750B | |
| Impact energy (J) | 150,300 | 250,500 | 500,750 |
| Impact velocity (m/s) | 5.2 | 5.4 | 5.9 |
| Raised angle | 150º | ||
| Standard span (mm) | 40 | ||
| Distance between pendulum rotating center and specimen center (mm) | 750 | ||
| Round angle of jaws (mm) | R1-1.5 | ||
| Round angle of striking edge (mm) | R2-2.5Â (R8 is optional) | ||
| Size of specimen (mm) | 10 x 10 x 55 | ||
| Power supply | 3phs, 380V, 50Hz/60Hz or specified by users | ||
| Dimensions (mm) | 2124 x 600 x 1340 | 2144 x 736 x 1390 | 2450 x 1200 x 2455 |
| Net Weight (KG) | 450 | 650 | 2300 |
| Display | Computer Display | ||
