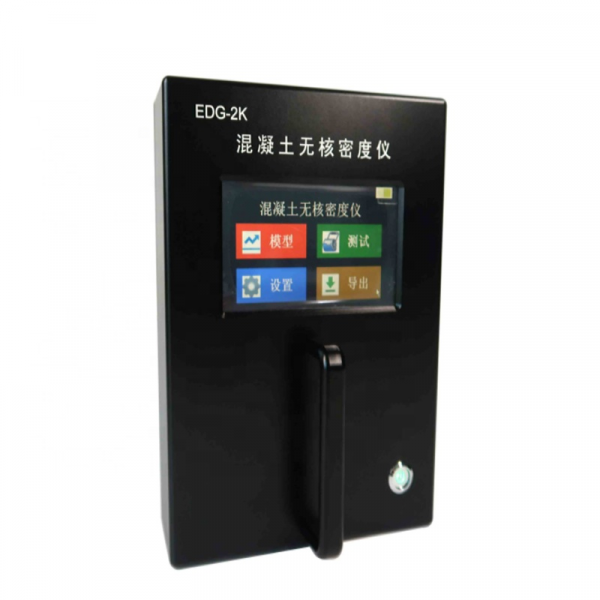

Concrete Electric Non nuclear Moisture Density Meter Gauge EDG

Introduction

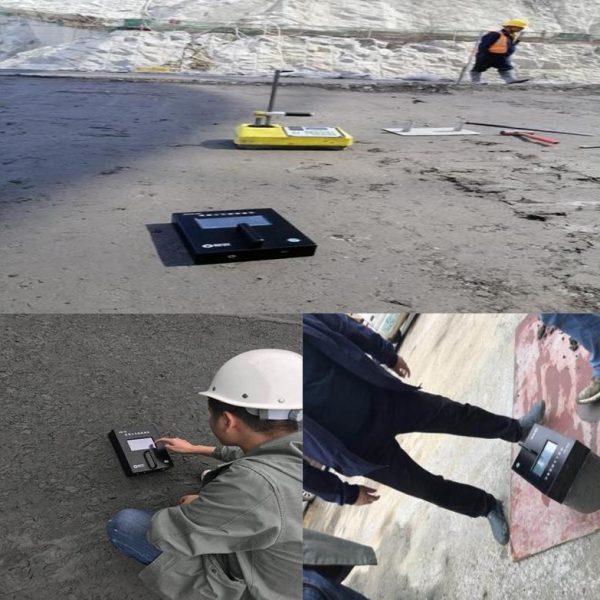

Concrete Nucleus Density Tester is used to quickly detect the density of roller compacted concrete on site. Using electromagnetic induction technology, low cost and high safety, users do not have to worry about cumbersome EIA applications, time-consuming training, and strict transportation controls. Simple calibration, high precision, good repeatability, touch screen operation, users can complete relevant operation training in a short time and master the technology of on-site quality inspection.

Capable of providing accurate readings of soil density,moisture content,and percent compaction

Soil electrical density gauge

Electrical density gauge is capable of providing accurate readings of soil density,moisture content,and percent compaction on soils typically used for roads and foundations.easy to operate,quality performance and precise testing results.

Feature:

1. Fast and accurate compaction measurement of roller compacted concrete.
2. Adoption of non-nuclear technology means no licensing, service fees or safety concerns.
3. The data can be read out accurately in 3 seconds.
4. Touch screen operation, easier to operate.
5. Higher precision and better stability.

Parameter

Testing Part

1. Operating temperature: ambient 0~70℃

2. Detection depth: 2cm~30cm

3. Temperature sensor: measuring range 0~350℃

4. Display measurement items: density, compaction

5. Measurement time: <3 seconds

6. Measurement accuracy: 3%

7. Built-in measurement correction function, accurate results can be obtained under various temperature and humidity conditions.

Instrument specifications

1. Host size: 140×80×57mm

2. Display: 5.1 inch bright color touch screen

3. Data storage: 32G memory, which can store 1 million test data

4. Main power supply: 12V 5000mAh lithium battery

5. Battery runtime: 20 hours of continuous use
