Introduction :

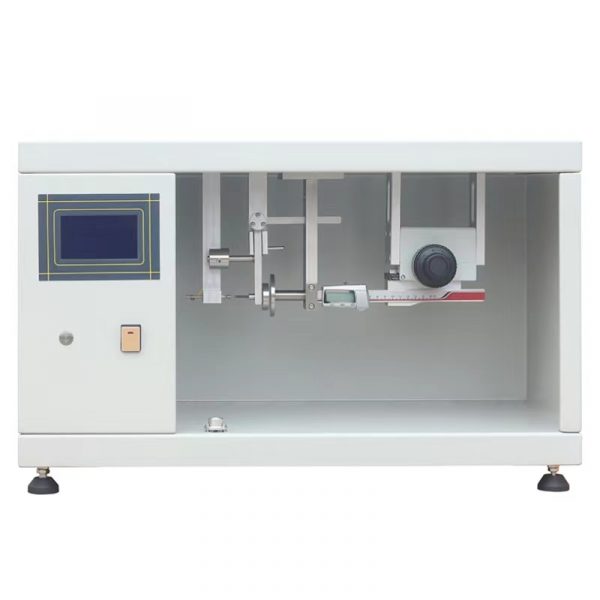

ISO 9073 NON WOVENS HORIZONTAL THICKNESS GAUGE It is suitable for measuring the thickness of various non-woven fabrics under specific pressure. It can be used by nonwovens industry, inspection departments and scientific research institutions. Below 20mm, use balance type nonwoven thickness tester

Standard :

ISO 9073-2

Parameter:

Nonwovens with thickness ≤20mm and large compression capacity: balance type nonwovens thickness tester
1. Presser foot area: 2500mm2;
2. Reference board area: 1000mm2;
3. It has a sample clamping device that can hang the sample vertically between the presser foot and the reference plate;
4. The elbow-shaped lever provides pressure: 0.02kPa;
5. Balance weight: (2.05±0.05)g;
6. Pressure screw: continuously adjust the position of the presser foot;
7. Pressurization time: 10s;
8. Balance benchmark monitoring: 0.01mm;
9. Measurement accuracy: 0.1mm;
10. Timing device: touch screen controller.
