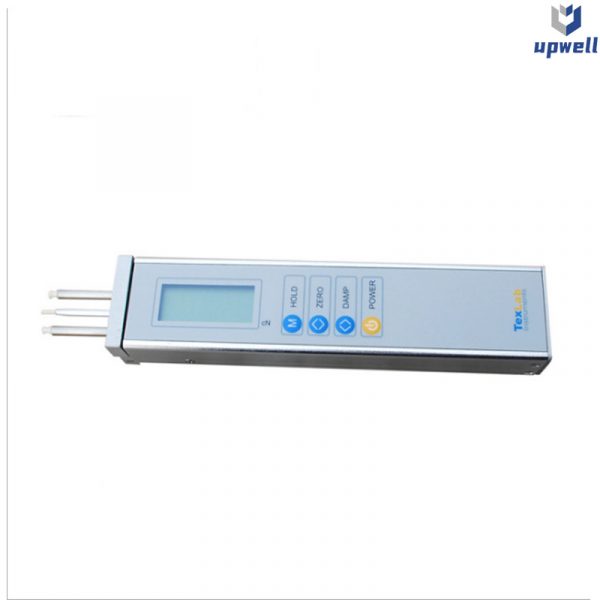

Electronic Yarn Tension Meter

Introduction:

Electronic Yarn Tension Meter is used throughout the world in a wide variety of typical as well as special applications. A few samples are shown below.

In the Knitting Industry: exact adjusting of yarn feeders of circular knitting

machines.

In the Man-Made Fiber Industries: For wire drawing or winding machines.

In the Wire Industries: doubling twister.

In Cotton Textile Industries: for winding machines.

In the Optical Fiber Industries: winding machines.

Parameter:

Range :0-200CN (0-200g) (Other capacity can be ordered)

Resolution: 0.1CN

Accuracy: ±1% full scale

Units: cN

Outrange: approx 10% full scale without accuracy guarantee

Overload  protection: 200% of tension range

Measuring principle: Strain gauge bridge

Measuring roller:0.5 mm

Signal processing: Digital 10 bit ADC

Damping: Adjustable electronic damp (3 steps) moving averaging
