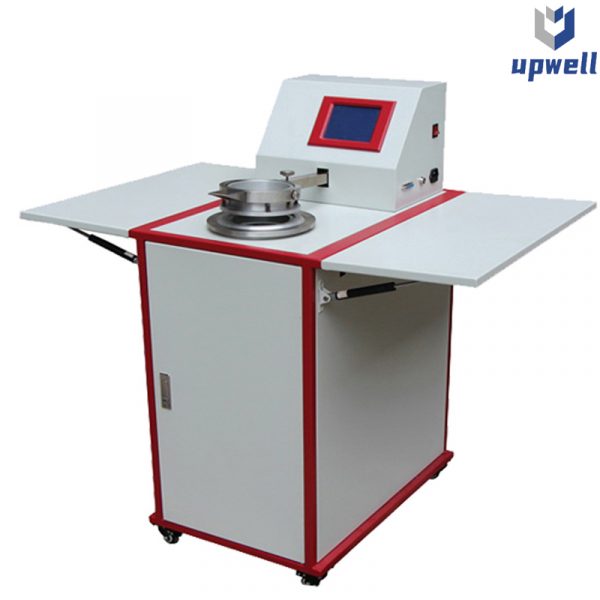

Fabric Textile Air Permeability Test Machine
Fabric Textile Air Permeability Test Machine
Testing Standard:GB/T 5453,GB/T 13764,ISO 9237,ISO 7231,ISO 5636,BS 5636,ASTM D737
DIN 53887,JIS L1096
- Description
- Inquiry
Introduction:
Used for testing the air permeability of various textile fabrics, textile manufactures, including industrial fabrics, nonwoven fabrics and other materials permeable to air.
Features:
- More excellent anti-jamming, more excellent stability, more rapid data transference speed.
- Adopt microcomputer control system, branded high accuracy pressure sensor, digital feedback and adjust air volume.
- Automatic orifice plate replacement, no manual replacement
- Automatic follow, measure and display pressure difference of each point with high stability and repeatability.
- All plates have been calibrated by-point in full testing range to let test data more accuracy.
- All test data is displayed by large high-definition large color touch screen displayer, no need to calculate test result by hands.
- Automatic converse air permeability rate and air permeability volume to improve test efficiency.
- Large touch screen displayer and controller.
Parameter:
1,Sample pressure range:1~4000Pa
2,Measuring permeating ratio:0.1~12000mm/s
3,Measuring error:≤±2%
4,Measuring sample thickness:≤12mm
5,Measuring area:5cm2;20cm2;50cm2;100cm2
Ø50mm(≈19.6cm2) Ø70mm(≈38.5cm2)
6,nozzle parameter:
NO. | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
diameterØ(mm) | 0.8 | 1.2 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
7,power:AC220V 50Hz 2KW
8,dimension:1070×670×1080mm
9,weight:75Kg
