Semi-automatic digital yarn tensile testing machine

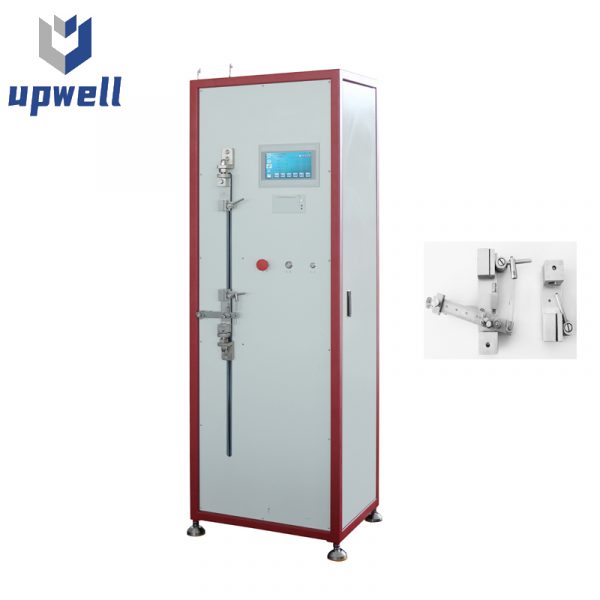

Semi Automatic Automatic Single Yarn Strength Tester
Load Cell Capacity:50N,500N
Gauge length: 250mm±1mm 500mm±1mm
- Description
- Inquiry
Introduction
Used for testing the breaking strength and elongation of single yarn of cotton,wool,hemp,silk,chemical fiber and core spun yarn
Feature :
- It is equipped with a standard 320X240 LCD screen, and the test results are displayed directly
- Built-in self editing window, can be set freely, suitable for the test of different samples
- According to the parameters set, the data can be grouped automatically, and the internal storage space is dynamically allocated
- The parameter setting can set the clamping distance, the test pinch distance does not need to move the location block, the host ispositioned automatically according to the setting
- Special time stretching function, stretching time can be set freely
- Support computer communication, can be online, equipped with professional software analysis system, convenient for data analysisand backup
- The first sample test and data processing software in China are multithreaded, and the test is really zero waiting
- The software can analyze the fracture point, breaking point, yield point, initial modulus, elastic plastic deformation and so on, whichis convenient for the mechanical testing and analysis of various material.
Technical parameter
Working mode | The principle of isokinetic extension(CRE), microcomputer control, LCD display, and online communication support |
force range | Full range 1%-100% |
Model | Type 5, Type 50 |
Full range | 50N,500N |
Test accuracy | ≤0.2FS |
Stretching speed | 50~1000mm/min |
Maximum elongation | 800mm |
Clamping distance | 50-500mm, (Digital setting) |
Preloading tension | 0-150cN Tension scale |
Power supply | AC220V 50HZ 250W |
Shape size | 520×400×1600mm |
Weight | 60kg |
