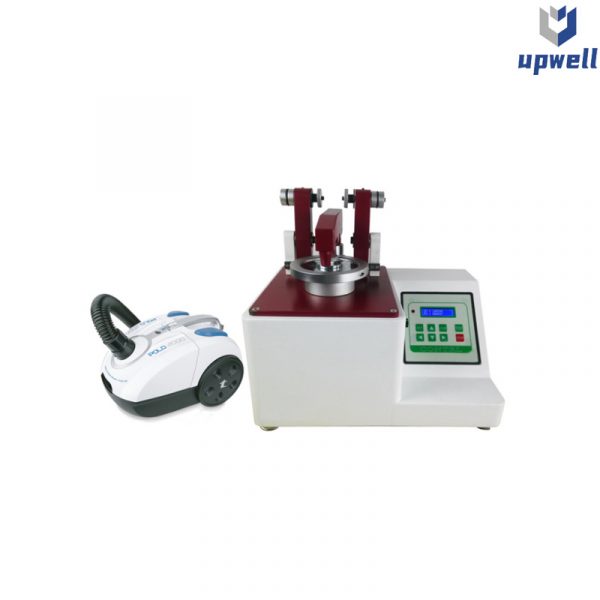

Taber Abrasion Tester
Taber Abrasion Tester
Testing Standard: DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470,
ASTM D 1175, ASTM D1044, ISO 7784, ASTM D406
- Description
- Inquiry
Taber Abrasion Tester is used for cloth, paper, paints, plywood, leather, tile, glass, rubber, etc .The testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load .The weight of abrasion loss is the difference of weight for specimens before and after testing .
Technical Parameter:
| Distance between wheel internal face | 52.4mm (adjustable) |
| Hole diameter | 6.35mm |
| Rotating Speed | 60-72 rpm |
| Load | 250g, 500g, 1000g |
| Distance between nozzel and specimen surface | 3mm (can be adjustable) |
| Dimension | 530×320×310mm |
| Weight | 20kg |
| Power | 110/ 220V, 50/60Hz, Single Phrase |
