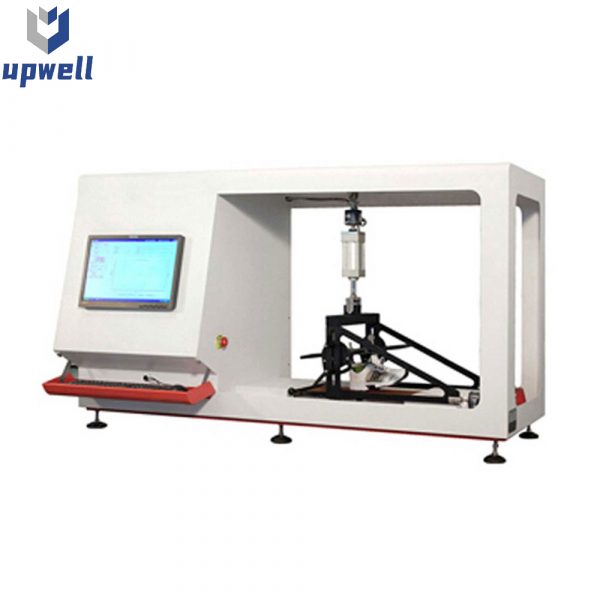

EN ISO 13287 SATRA TM144 Footwear Slip Resistance Tester
Footwear slip resistance tester is used to determine the slip resistance of conventionally soled safety, protective and occupational footwear on different floors (such as ceramic tile, stainless steel or carpet). It is not applicable to special purpose footwear containing spikes, metal studs or similar.
Related Testing Standard:EN ISO 13287, SATRA TM144
- Description
- Inquiry
Application:
Footwear slip resistance tester is used to determine the slip resistance of conventionally soled safety, protective and occupational footwear on different floors (such as ceramic tile, stainless steel or carpet). It is not applicable to special purpose footwear containing spikes, metal studs or similar.
Features:
1聽聽Footwear can be tested in three slip modes,聽close to the reality of slip;
2聽聽Settable normal force and horizontal force;
3聽聽Footwear slip resistance tester聽with聽LCD display.
Footwear Slip Resistance Tester聽Parameter
| Max. normal force | 1000N |
| Max. horizontal force | 1000N |
| Sliding speed | (0.3卤0.03)m/s |
| Static contact time | 0~5s |
| Vertical force sensor | 1.25KN |
| Horizontal force sensor | 0.85KN*2 |
| Test floor | Compressed ceramic tile floor, stainless steel and carpet |
| Power supply | AC220V 50Hz |
| Dimensions聽 | 1010脳670脳1900mm |
| Weight聽 | 300kg |
