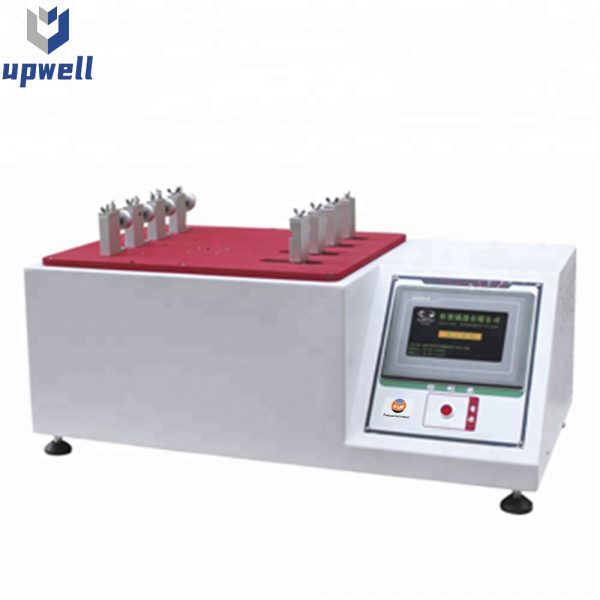

DIN 4843 SHOE LACE & EYELETS ABRASION TESTER
shoe lace and eyelets abrasion tester   is used to determine the abrasion resistance of shoe laces
Related Testing Standard:DIN 4843，SATRA PM154
- Description
- Inquiry
Application:Â
shoe lace and eyelets abrasion tester   is used to determine the abrasion resistance of shoe laces. Shoe laces are abraded by rubbing it backwards and forwards through crossing to each other under tension. The number of cycles required to break the shoe lace is determined.
SHOE LACE & EYELETS ABRASION TESTER PARAMETER:Â
| Specimen No. | 4 groups |
| Load | 250±3g  |
| Speed of moving clamps | 60cpm |
| Stroke of moving clamps  | 35mm |
| Max. distance between moving clamp and fixed clamp | 310mm |
| Motor | DC brushless motor, 120W |
| Display | LCD, 0~999,999 |
| Specimen specification Hooking angle    Distance |
52.2° 120mm |
| Dimensions  | 660mm×580mm×420mm(L×W×H) |
| Weight | approx. 66kg |
| Power supply | 220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required) |
