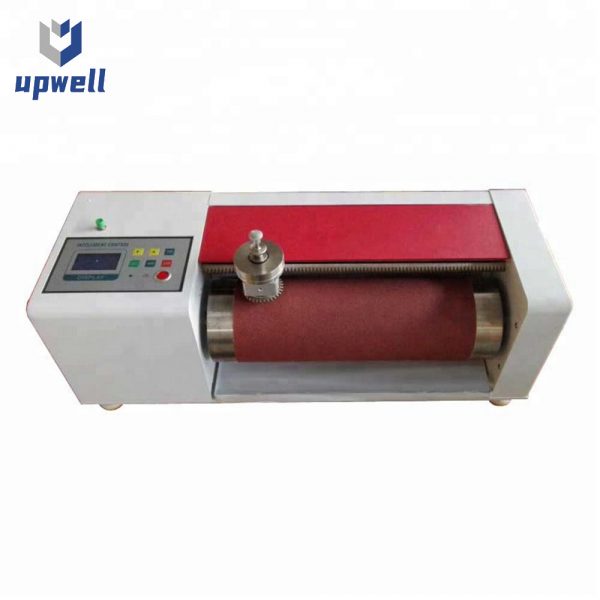

DIN 53516 ASTM D5963 ISO 4649 Sole DIN Abrasion Resistance Testing MachineÂ
Sole DIN Abrasion Resistance Testing Machine is applicable to flexible materials, rubber, tires, conveyor system, transmission belts, sole, leather and so on.Â
Related Testing Standard:DIN 53516 ASTM D5963 ISO 4649
- Description
- Inquiry
Application
Sole DIN Abrasion Resistance Testing Machine is applicable to flexible materials, rubber, tires, conveyor system, transmission belts, sole, leather and so on. There is adequate test area, operation and sampling are simple. It should be used together with a balance. Sole din abrasion tester mainly consists of power system, rotary roller, sample clamping device, automatic stop system and rack and small driving gear for driving the sample, seat and dust collector.
The major working principle is that under some specific load and on sand cloth of a specific grade, the column-shaped sample is placed on the sand cloth for abrasion for a specific journey. In this way, the mass of the abrasion from the sample can be measured by using the balance. With this and the density of the sample, the abrasion volume can be calculated.Â
Key Specifications | |
Diameter of roller | 150mm |
Abrasion stroke | 40±0.2M |
Rotating speed of roller | 40±1 cycles per mine |
Horizontal speed of clamp | 4.2±0.04rpm |
Load | 2.5N, 5N, 10N |
Model No. | DW5440 Sole DIN Abrasion Resistance Tester |
