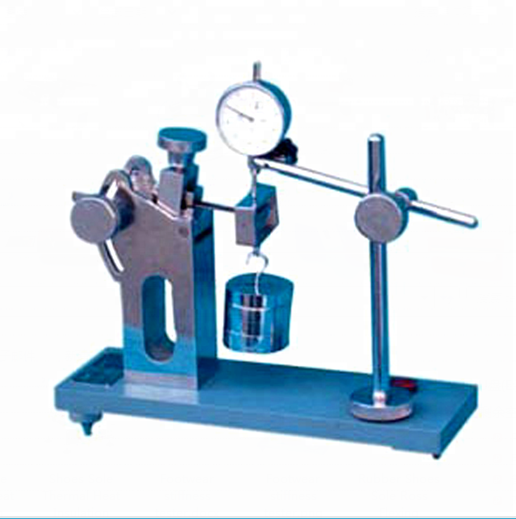

BS EN 12959 BS 5131 Footwear stiffness tester
 Footwear stiffness tester   is used to test the longitudinal stiffness property of the shanks. Fix the back of the shank and loading on it front to produce a cantilever-type bending deformation and then measure the bending angle of shank, calculate the longitudinal stiffness.
Related Testing Standard:BS EN 12959 BS 5131
- Description
- Inquiry
Application:
 Footwear stiffness tester   is used to test the longitudinal stiffness property of the shanks. Fix the back of the shank and loading on it front to produce a cantilever-type bending deformation and then measure the bending angle of shank, calculate the longitudinal stiffness.
Features:
1, Light and durable;
2,  Easy to operate and maintenance.
Key Specification:
Length of back holder | 32 mm |
Angle of back holder | 30°(adjustable) |
Dial indicator | 0~10mm |
Accuracy of dial indicator | 0.01mm |
Mass of weight | 200g |
Dimension | 330×110×300mm |
Weight | 8kg |
