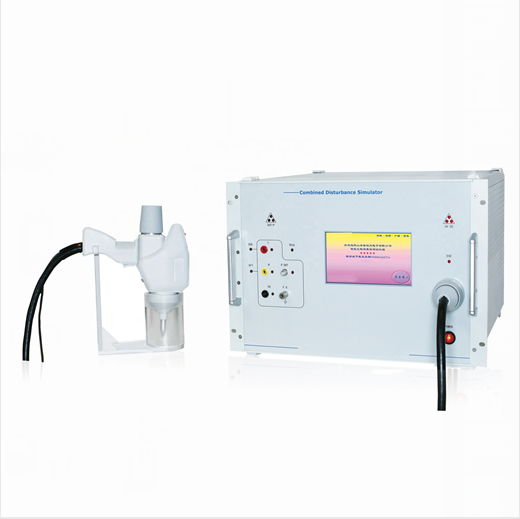

EMC Testing Device ESD EFT Surge combined Simulator
- ESD, EFT, and SURGE, three functions combined into a single, more cost-effective
- Built-in international standards level parameters and user models parameters,very convenient
- LCD display, Intelligent control, Use the Programmable imported high-voltage power supply, Reliable performance
- Built-in intelligent couping/decoupling network. Testing safely
- Built-in the RS232 interface ,Remote operated by the optional control software.
- Description
- Inquiry
Electrostatic Discharge ESD Simulator contains ESD, EFT and Lightning surge three functions,it complies with the latest standards IEC61000-4-2,IEC61000-4-4,IEC61000-4-5
Feature:
- ESD, EFT, and SURGE, three functions combined into a single, more cost-effective
- Built-in international standards level parameters and user models parameters,very convenient
- LCD display, Intelligent control, Use the Programmable imported high-voltage power supply, Reliable performance
- Built-in intelligent couping/decoupling network. Testing safely
- Built-in the RS232 interface ,Remote operated by the optional control software.
Parameter:
ESD | Output voltage | 0.2~± 20 kV Positive / Negative | |
Testing functions | Contact discharge /Air discharge | ||
Working form | Discharge interval 0.05 ~ 99.99s ,Testing form20PPSdischarge; setting less than0.05s,be called single discharge | ||
Discharge capacitor/Resistor | 150pF /330 Ω (optional) | ||
Current rise time | 0.6 ~ 1ns | ||
EFT | Output voltage | 0 ~± 4800V Positive/Negative//Switchable | |
Pulse frequency | 1kHz~1200kHz ± 10%, adjustable | ||
Resistor | 50 Ω± 20% | ||
Rise time | 5ns ± 30% | ||
Impulse duration | 50 Ω load | 50ns ± 30% | |
1k Ω load | 35 ns~150 ns | ||
Number of burst | 1~255 | ||
Burst period | 300mS ( 0.15~9.99 S adjustable,step 0.01S ) | ||
EUT coupling path | Built-in,single phase three line,max 16A | ||
SUG | Open -circuit t voltage/short-circuit current | Open -circuit t voltage:1.2/50 μ s , 0.2~ 6kV | |
Surge polarity | Positive / Negative/Switchable | ||
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism | ||
Output impedance | Complex impedance: 2 Ω 12 Ω | ||
Coupling path | Built-in,single phase three line ,max 16A | ||
Surge count | 1~9999 | ||
Surge interval | 10~9999s | ||
Working power supply | AC220V 50/60Hz | ||
