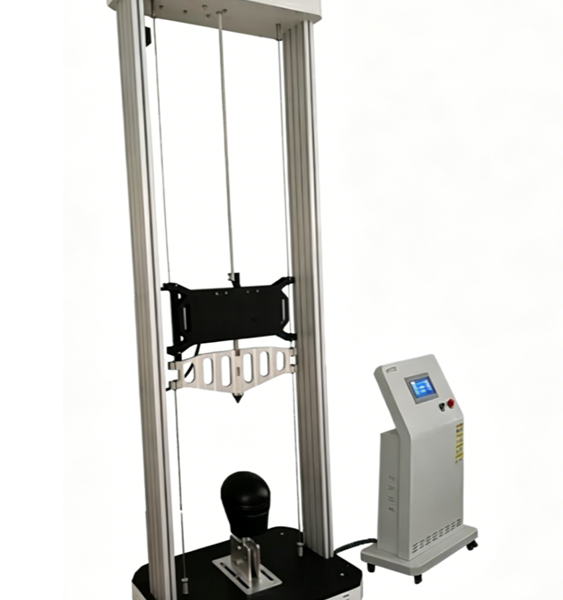

Helmet Penetration Resistance Tester

HELMET PENETRATION RESISTANCE TESTING MACHINE

Tags:
  • Description
  • Inquiry

Introduction:

Helmet Penetration Resistance Testing Machine is mainly used for penetration resistance testing of motorcycle helmets, electric bicycle helmets, sports helmets, etc. It is widely used in the production, research and development, quality supervision and other units of motorcycle helmets, electric bicycle helmets, and sports helmets. It can also be used for penetration resistance testing of other products such as rescue helmets, fire helmets, ski helmets, military and police helmets, etc.



Features:



  • PLC touch screen operation control, relevant operations can be completed through touch screen operation.
  • Adopt special testing tooling and full head mold design.
  • The whole machine has a door-type structure, and the base has impact resistance, can firmly install relevant components, and reserves relevant fixing holes to ensure the stability and reliability of the equipment.
  • The release device adopts pneumatic release, and there is an audible alarm prompt before release.
  • The height is automatically collected and processed by an encoder. The touch screen can set and display the height in real time. When the height is set, the lifting will automatically stop.
  • The lifting and releasing parts of the piercing steel cone adopt double guide rail structures to ensure smooth falling.
  • The fixed base of the headform can be adjusted in angle and front and back to facilitate testing of different parts.
  • Different standards and helmet configurations are slightly different. The specific configuration is subject to actual purchase.



Parameter

Head mold: Magnesium aluminum alloy full head mold, response frequency <2000HZ, divided into extra small (A), small (E), medium (J), large (M), extra large (0). (Quantity optional)



Puncture steel cone: T10A tool steel, mass 3kg-3.05kg, hardness ≥50HRC, cone tail Φ25mm cylinder, cone tip SR0.5mm, angle 60°, cone height 38mm±0.5mm.



Impact height: 0-1000mm/3000mm, optional. The impact height can be set by yourself.



The distance between two times: ≥75mm.
