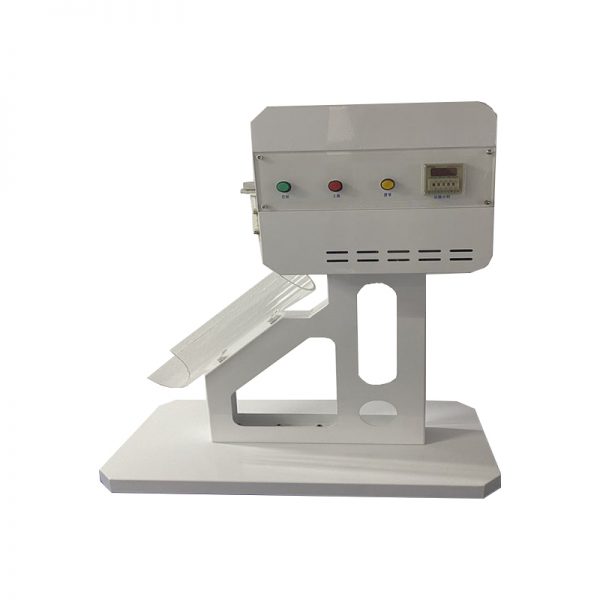

ISO 6530 Fabric Liquid Repellency Tester

Introduction:

ISO 6530 Fabric Liquid Repellency Tester it is mainly used for testing the liquid repellency efficiency of protective clothing for acid and alkali chemicals. It is widely used in special labor protection product supervision and inspection stations, production safety science research institutes, product quality inspection institutes, and acid and alkali clothing manufacturers.

Features:

1. Automatic injection system, ensuring that the syringe continuously sprays 10±0.5mL reagent within 10±1s.
2. The waiting time can be set by yourself, and the real-time LED digital display. The standard waiting time is 60s (including injection time).
3. The transparent tank is made of corrosion-resistant material.
4. Acrylic decorative panel, simple and beautiful.
5. One-button aspiration and injection.

Standard:

ISO 6530

Technical specifications:

1. Test size: 360±2mm×235±2mm
2. Test reagents: 80% H2SO4, 30% NaOH, 30% HCl, 40% HNO3, selected according to actual test conditions (self-prepared).
3. Transparent tank: semi-cylindrical polytetrafluoroethylene, inner diameter 125±1mm, length 300±0.5mm, tilted 45°
4. Syringe: capacity 10±0.5mL, needle hole diameter 0.8±0.02mm, needle tip is flat.
5. Injection speed: 10±0.5mL reagent is continuously injected within 10±1s.
6. Power supply: 220V 50HZ
