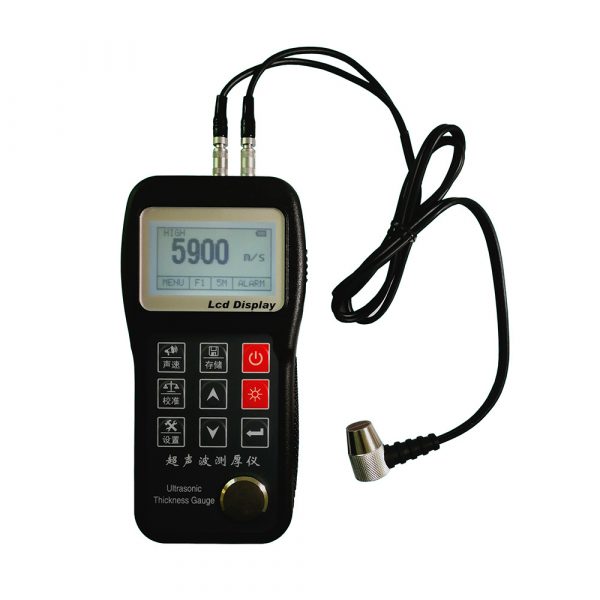

Portable Ultrasonic Thickness Gauge
Ultrasonic Thickness Gauge is a new generation of intelligent ultrasonic thickness gauge, using the latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement. Is widely used in all kinds of plate, pipe wall thickness, the boiler container wall thickness, all kinds of pipeline and pressure vessel, thickness measurement, monitor them in the process of using the degree of corrosion after thinning. With communication software, can be connected to computer.
- Description
- Inquiry
Ultrasonic Thickness Gauge is a new generation of intelligent ultrasonic thickness gauge, using the latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement. Is widely used in all kinds of plate, pipe wall thickness, the boiler container wall thickness, all kinds of pipeline and pressure vessel, thickness measurement, monitor them in the process of using the degree of corrosion after thinning. With communication software, can be connected to computer.
Feature:
*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasound;
*Can be equipped with a variety of different frequency, chip size, double crystal probe use;
*Have probe zero calibration, a two-point calibration function, can be automatically on system error correction;
*Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement;
*With functions of coupling status alert;
*With LED backlight, convenient to use in dark environment ;
*Battery indicator function, real-time display remaining power;
*With automatic power saving function dormancy, automatic shutdown etc;
*Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
Parameter
| Measuring Range | 0.75~300mm (0.03~11.8inch) depends on probe Standard probe: 1.2~230mm |
| Sound Velocity Range | 1000~9999m/s (0.039~0.394in/μs) |
| Display Resolution | 0.01mm(lower than 100.0mm) 0.1mm(more than 99.99mm) |
| Accuracy | ±(0.5% thickness+0.04)mm, depends on materials and conditions |
| Data Memory | 5 files x 100 values, 5 value of sound velocity |
| PC Software | No |
| Power | AA battery 2pcs (working time 250 hours if backlight off) |
| Working Temperature | -10°C~60°C |
| Size | 150x74x32mm |
| Weight | 238g |
Packaging List
| ITEM | QTY |
| Host | 1 PC |
| Standard Probe No5 | 1 PC |
| Built-in 4mm Calibration Piece | 1 PC |
| Couplant | 1 PC (Non-aviation transport) |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
