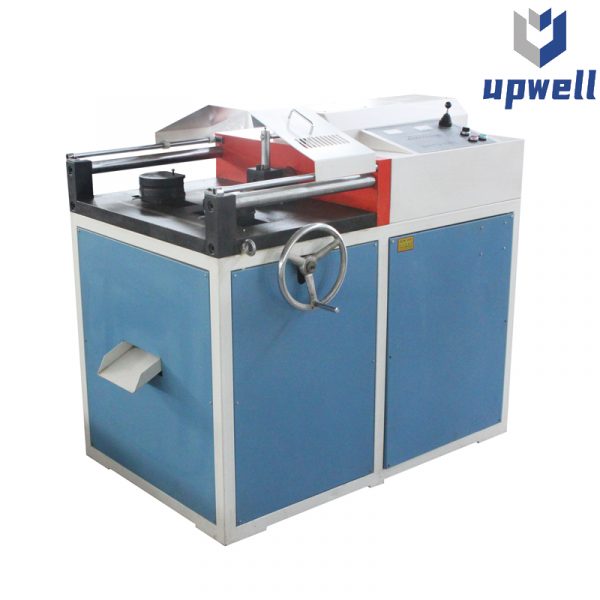

Steel ReBar Bending Reverse bending Testing machine
- Steel ReBar Bending Reverse bending Testing machine
- Test material:rebar,steel rebar
- Steel rebar diameter:6-φ40mm
- Testing Starndard: ISO 15630-1, ISO 6935-2, ASTM A615, ASTM A615 A615M-09B, BS 4449
- Description
- Inquiry
Application & Features:
The steel bar bend testing machine can be used to do bend and reverse bend test on plane. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company. It can be used to bend the steel bar on-site so that test and construct can be done in one machine.
The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating, especially reasonable design of limit position and easily damaged parts, so it has a long using time.
Â
Â
 Main Technical Specifications:
Model | GW-40 |
Range of bend steel bar’s diameter | φ6-φ40mm |
Angle of steel bar bend test | 0°-180°at will    |
Angle of steel bar reverse bend test | 0°-180°at will    |
Max Force | 150kN |
Max Testing Speed | 500mm/min |
Piston stroke | 400mm |
Motor power | 2.2KW, 3-phase, 380V, 50Hz/60Hz (Or specified by users) |
Host size | L*W*H=1350×750×1200mm |
Weight | 850KG |
