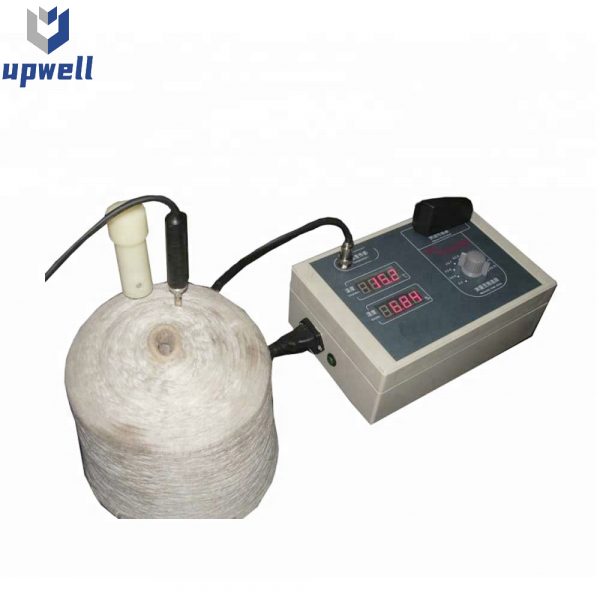

Yarn Humidity Tester

Yarn humidity tester , which integrates functions of temperature and moisture testing, is widely used in moisture testing of, pure cotton bobbin yarn, blended bobbin yarn and other chemical yarn.

Categories: TEXTILE TESTING MACHINE Tags: Yarn Humidity Tester

Description
Inquiry

Application:

Yarn humidity tester , which integrates functions of temperature and moisture testing, is widely used in moisture testing of, pure cotton bobbin yarn, blended bobbin yarn and other chemical yarn.

This Yarn humidity tester has been designed according to Physics electric property of fibers; the electric resistance of sample should be in range of 3.8×104Ω~2×1012Ω

Features:

Large testing range can perform test for different kind bobbin yarns and provide the accuracy result;

Equipped with temperature meter to correct the test result;

Long probe design;

Portable aluminum alloy box.

Key Specification of Yarn humidity tester:

Working conditions	Temperature: 5°C~35°C Relative humidity: ≤65%,when using 2 or 3 shift; ≤≤85%, when using shifts from 4 to 11
Measuring voltage	DC100V±2V
Display Accuracy	temperature 0.1°C, humidity: 0.1%
Temperature range and error	5°C~35°C, ±0.5°C
Power Supply	220V±22V, 50HZ, 3W
Dimension	240mm×160mm×120mm
Weight	3kg
Selected Material of Meter	ABS engineering material
Packing	Portable aluminum alloy box
