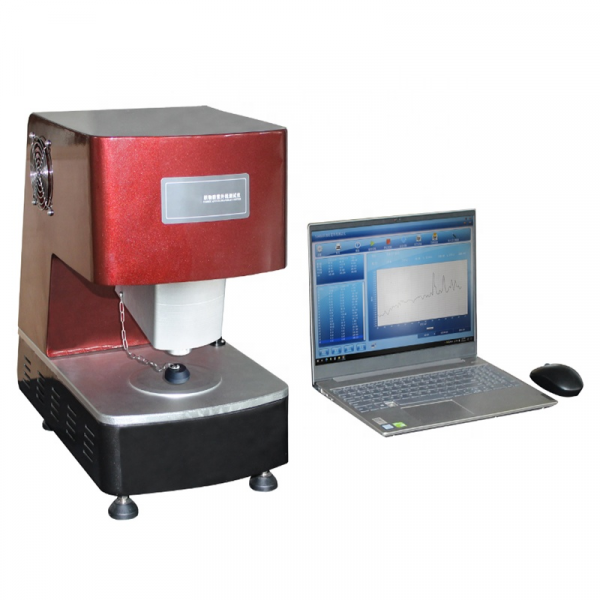

AATCC 183 Fabric Textile Ultraviolet Ray Tester
UPF and UV Penetration Protection Measurement System .Determine the ability to block UVR and measure UPF of fabric directly.Â
Ralatived Testing Standard:AATCC 183Â AS/NZS 4399
- Description
- Inquiry
AATCC 183 Fabric Textile Ultraviolet Ray Tester This tester is a special instrument used to test the UV transmittance and anti-ultraviolet performance of textiles, which can automatically test the UV protection coefficient UPF of textiles.
Feature:
1. Professional computer analysis software, which can perform report statistics, visual analysis of graphs, etc.
2. The light source adopts a deuterium lamp, and the light path adopts a high-precision ultraviolet monochromator and an ultraviolet integrating sphere; the wavelength is automatically scanned by a stepping motor.
3. Adopt ultraviolet photomultiplier tube, wide test range and high test accuracy.
Main Paramter:
1. Measuring range: [Transmittance]0~100%±0.01%; [UPF]0~1000+
2. Wavelength range: UV-A 315~400nm±0.5nm, UV-B 280~315nm±0.5nm
3. Wavelength repeatability: 0.25nm
4. Data interval: 2nm (American standard), 5nm (national standard)
5. Slit width: ≤5nm
6. Sample beam diameter: 10mm
7. Dimensions: 500×300×560mm
8. Weight: 25kg
9. Power source: AC220V 50Hz 100W
