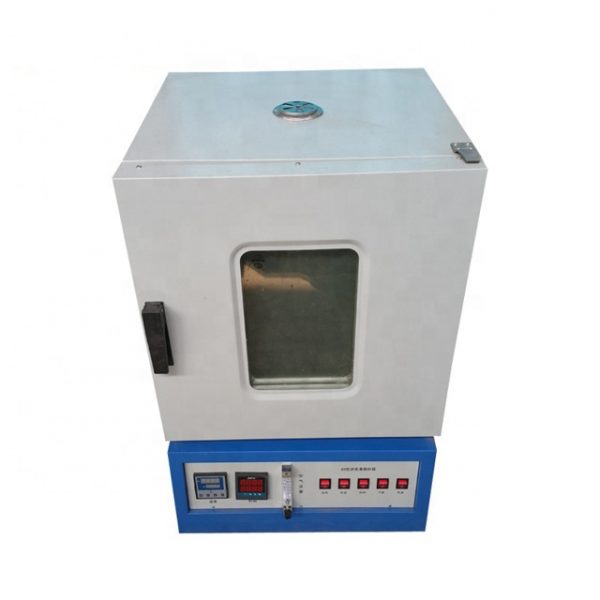

Asphalt Bitumen Thin Film Rotation Oven
Asphalt Bitumen Thin Film Rotation Oven/Rotating Bituminous Membrane Drying Oven  for Simulates the aging that occurs during the production of hot-mix asphalt mixtures and is used to determine the aging asphalt samples in the test.
- Description
- Inquiry
Asphalt Bitumen Thin Film Rotation Oven/Rotating Bituminous Membrane Drying Oven  for Simulates the aging that occurs during the production of hot-mix asphalt mixtures and is used to determine the aging asphalt samples in the test.
Â
Features:
Â
1. Stainless steel inner.
2. The intelligent digital display temperature controller can automatically control temperature with accurate measurement and error correction function.
3. Squirrel-cage fan is stirred to ensure accurate temperature control. After closing the door for 10min, the sample is heated up to 163℃ again.
4. Novel appearance.
5, built-in air compressor, low noise, no oil return.
6, double door design, more safety.
Parameter:
| Working temperature | 163℃ |
| Temperature control accuracy | 0.5℃ |
| Air supply | 4000±200ml |
| Heating power | 3KW |
| Sample bottle | 8 pcs |
| Turntable speed | (15±0.2)r/Min |
| Dimensions | 810*800*1200mm |
| Weight | 150KG |
| Voltage | 220V±10%,50Hz/Customized |
| Power | Â 3.5KW |
| Environment temperature | 5-40℃ |
| Environment humidity | ≤85% |
