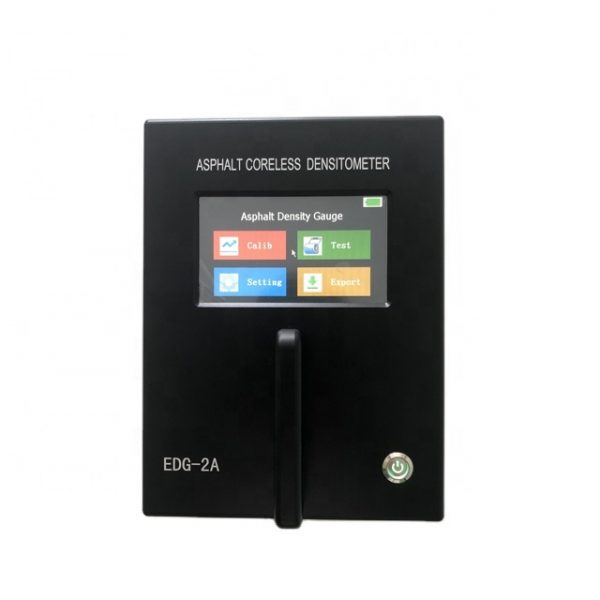

Asphalt Bitumen Non-nuclear Electronic Density Gauge (EDG)
The EDG-2A non-nuclear asphalt density tester can quickly detect areas where road surface segregation, low density, and unevenness occur. The use of electromagnetic induction technology instead of nuclear source radiation method, low cost, high security, users do not have to worry about cumbersome environmental assessment applications, time-consuming training, and strict transportation control. The calibration is simple, the precision is high, the repeatability is good, the touch screen operation, the user can complete the relevant operation training in a short time, and master the technology of on-site quality inspection.
- Description
- Inquiry
The EDG-2A non-nuclear asphalt density tester can quickly detect areas where road surface segregation, low density, and unevenness occur. The use of electromagnetic induction technology instead of nuclear source radiation method, low cost, high security, users do not have to worry about cumbersome environmental assessment applications, time-consuming training, and strict transportation control. The calibration is simple, the precision is high, the repeatability is good, the touch screen operation, the user can complete the relevant operation training in a short time, and master the technology of on-site quality inspection.
Touch screen operation; direct test on site, no need to take the core calibration; three measurement modes, higher precision. Can test asphalt density, compaction and porosity
Feature:
1. Fast and accurate measurement of asphalt concrete pavement density, compaction and porosity.
2. The use of non-nuclear technology means that licenses, service fees or security considerations are exempt.
3. The data can be read accurately in 3 seconds.
4. Touch screen operation, the operation is simpler.
5. No need for core calibration, direct test on site.
6. Continuous measurement, average measurement, and separation measurement are available in three measurement modes.
7. Higher precision and better stability.
Parameter:
| Name | Electric Asphalt Density Gauge |
| Detecting depth | 2cm~30cm |
| Measuring range of temperature sensor | 0~350鈩 |
| Measuring project | Density, compactness, porosity |
| measuring time | <3 seconds |
| Measuring accuracy | 3% |
| Size of Host Machine | 255脳188脳74mm |
| Weight | 1.95kg |
| Display | 5.1 “bright color touch screen |
| Data storage | 32G, Store 1 million test data |
| Power | 12V 5000mAh, lithium battery |
| Running time | Working 20 hours |
